McGregor Lighting

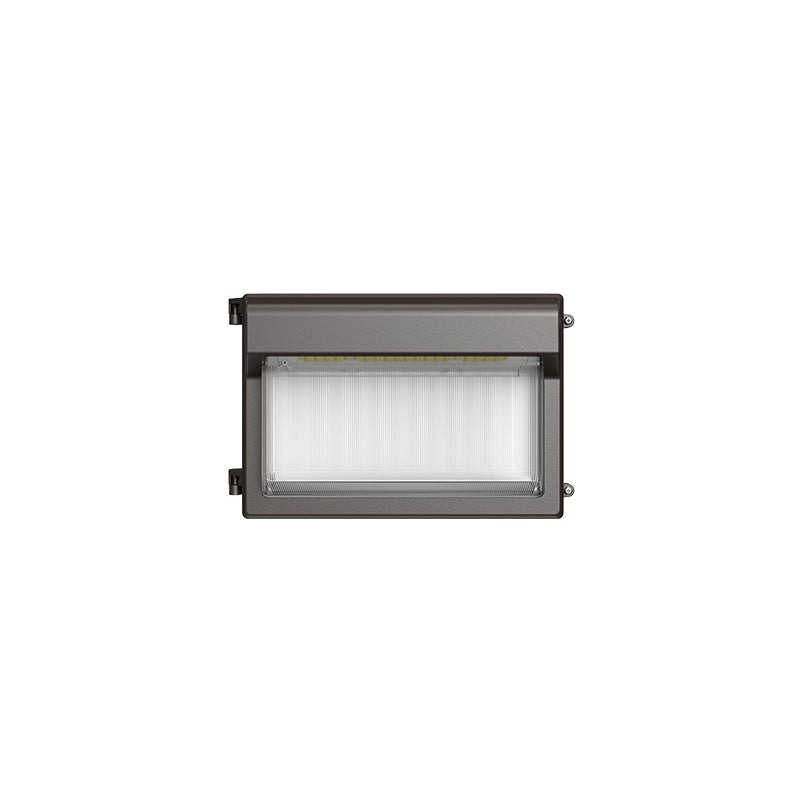

LED Wall Pack - MWP16
The LED MWP16 series is the wall pack that combines the dimensions of traditional wall packs with modern aesthetics. Its ultra-thin design meets the low-budget requirements of customers while providing excellent lighting service. Its sleek and low-profile appearance seamlessly integrates into various architectural styles, while completely covering the unsightly stains left by typical metal halide wall packs. UV-resistant polycarbonate lenses and durable glass lenses are available options. Additionally, the MWP16 allows on-site adjustment of light output and color temperature, and has multi-functionality such as photocell control and emergency lighting. With its powerful features and long lifespan, the MWP16 is definitely your ideal choice for a wall pack. Features & Benefits: UV stabilized polycarbonate and glass are both available for the optic lens. Four adjustable Wattage levels available for each models. Color Temperature adjustable: 3000K, 4000K,5000K. Universal 120-277VAC input voltage. 0-10V dimming driver standard for 10% to 100% dimming. Emergency Battery option. Operating temperature is -40°C to 40°C.
Series Specifications
| Series No. | MWP16 |
|---|---|
| Voltage | 120-277 VAC |
| Light Source Type | LED chips |
| Color Temperature | 3000K/4000K/5000K |
| Power | 60W, 90W, 120W |
| Light Output | 8500lm, 12500lm, 16500lm |
| UL listing | Wet location |
| Operating Temperature | -40°C to 40°C ( -40°F to 104°F ) |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Pathway, Building entryways, Perimeter lighting |
| Mounting | Junction box or Wall mount |
| Accessory | Photocell - Button (Optional), Emergency Battery Backup |
| 60W/90W | 14.2x9.25x4.43in |
| 120W | 18x9.75x4.5in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MWP1640W27VDDKDAD | 3000K/4000K/5000K Max 40W Max 5,800 lm 145 lm/W 175W MH USE: The wattage and CCT can be |
| MWP1660W27VDDKDAD | 3000K/4000K/5000K Max 60W Max 8,500 lm 142 lm/W 250W MH on the controller. |
| MWP1690W27VDDKDAD | 3000K/4000K/5000K Max 90W Max 12,500 lm 139 lm/W 250W MH |
| MWP16120W27VDDKDAD | 3000K/4000K/5000K Max 120W Max 16,500 lm 138 lm/W 400W MH |
Pricing and inventory availability are provided by McGregor Lighting.
Product Dossier
- SKU
- MWP1640W27VDDKDAD
- Brand
- McGregor Lighting
- Fixture Type
- LED Wall Pack
- Price
- $0.00
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
The LED MWP16 series is the wall pack that combines the dimensions of traditional wall packs with modern aesthetics. Its ultra-thin design meets the low-budget requirements of customers while providing excellent lighting service. Its sleek and low-profile appearance seamlessly integrates into various architectural styles, while completely covering the unsightly stains left by typical metal halide wall packs. UV-resistant polycarbonate lenses and durable glass lenses are available options. Additionally, the MWP16 allows on-site adjustment of light output and color temperature, and has multi-functionality such as photocell control and emergency lighting. With its powerful features and long lifespan, the MWP16 is definitely your ideal choice for a wall pack. Features & Benefits: UV stabilized polycarbonate and glass are both available for the optic lens. Four adjustable Wattage levels available for each models. Color Temperature adjustable: 3000K, 4000K,5000K. Universal 120-277VAC input voltage. 0-10V dimming driver standard for 10% to 100% dimming. Emergency Battery option. Operating temperature is -40°C to 40°C.
Series Specifications
| Series No. | MWP16 |
|---|---|
| Voltage | 120-277 VAC |
| Light Source Type | LED chips |
| Color Temperature | 3000K/4000K/5000K |
| Power | 60W, 90W, 120W |
| Light Output | 8500lm, 12500lm, 16500lm |
| UL listing | Wet location |
| Operating Temperature | -40°C to 40°C ( -40°F to 104°F ) |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Pathway, Building entryways, Perimeter lighting |
| Mounting | Junction box or Wall mount |
| Accessory | Photocell - Button (Optional), Emergency Battery Backup |
| 60W/90W | 14.2x9.25x4.43in |
| 120W | 18x9.75x4.5in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MWP1640W27VDDKDAD | 3000K/4000K/5000K Max 40W Max 5,800 lm 145 lm/W 175W MH USE: The wattage and CCT can be |
| MWP1660W27VDDKDAD | 3000K/4000K/5000K Max 60W Max 8,500 lm 142 lm/W 250W MH on the controller. |
| MWP1690W27VDDKDAD | 3000K/4000K/5000K Max 90W Max 12,500 lm 139 lm/W 250W MH |
| MWP16120W27VDDKDAD | 3000K/4000K/5000K Max 120W Max 16,500 lm 138 lm/W 400W MH |
Pricing and inventory availability are provided by McGregor Lighting.
