McGregor Lighting

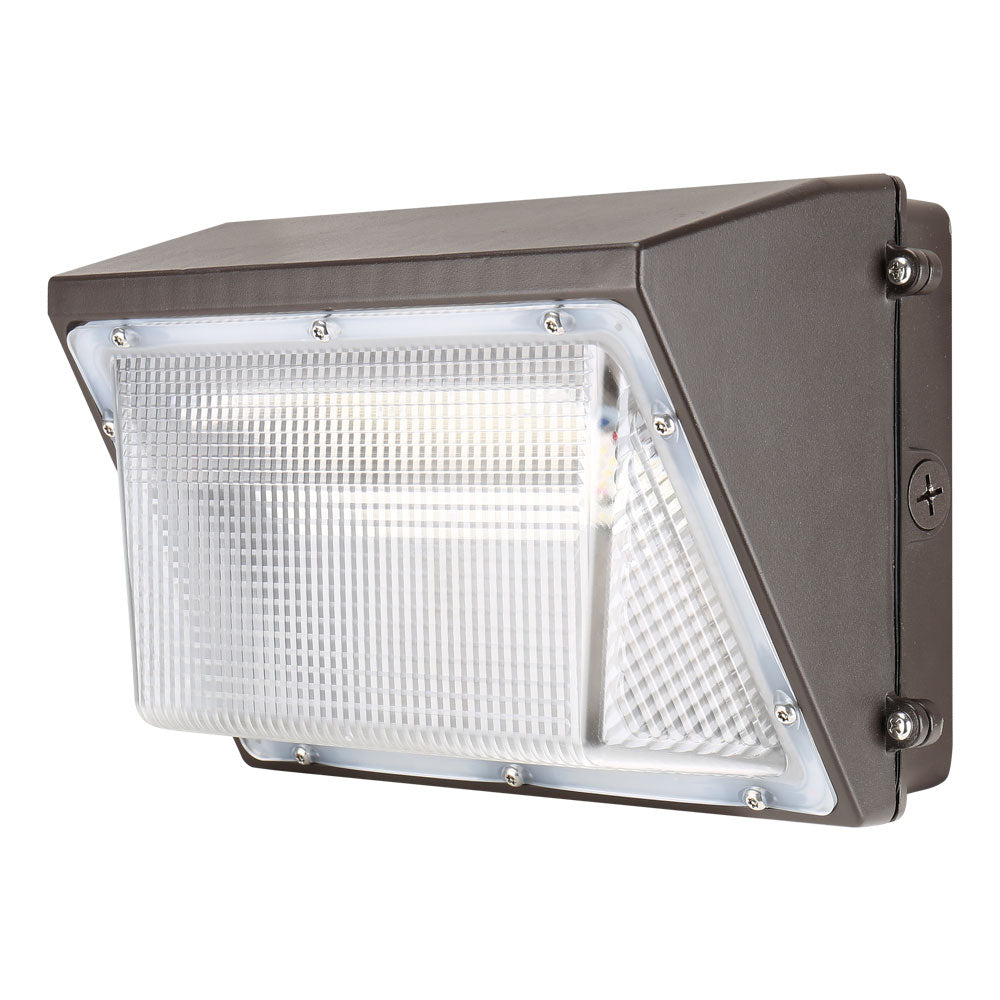

LED Wall Pack - MWP04
As versatile as it is efficient, WP04 is designed to replace up to 400W metal halide while saving up to 87% in energy costs. The brand new WP04 series provides enhanced end-user experiences and unmatched energy savings. The long life LEDs and driver make this fixture nearly maintenance-free. The classic architectural shape of the WP04 series was designed for applications such as roadway lighting, building entrances, schools, tunnels, factories and loading docks. Features & Benefits: Robust and compact housing design. UV stabilized polycarbonate and glass are both available for the optic lens. Universal 120-277 or 347-480 VAC input voltage. 0-10V dimming driver standard for 10% to 100% dimming. Occupancy sensor and Emergency Battery option. Easy installation. Operating temperature is -40℃ to 40℃.
Series Specifications
| Series No. | MWP04 |
|---|---|
| Voltage | 120-277V/347V-480V VAC |
| Dimmable | 1-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 4000K/5000K |
| Power | 27W, 45W, 62W, 90W, 115W |
| Light Output | 3450 lm, 5600 lm, 7800 lm, 11000 lm, 14500 lm |
| UL listing | UL-US-2005593-0 |
| Operating Temperature | -40°C to 40°C （-40°F to 104°F） |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Pathway, Building entryways, Perimeter lighting |
| Mounting | Junction box, Wall mount (No need to open driver box) |
| Accessory | Photocell - Button (Optional), PIR Motion Sensor (Optional) Emergency Battery Backup (Optional) |
| 27W&45W&62W&90W&115W | 11.95x7.7x6.23in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MWP0427W27V50KDD | 5000K 27W 3,450 lm 128 lm/W 100W MH by requesting |
| MWP0445W27V50KDD | 5000K 45W 5,600 lm 124 lm/W 175W MH |
| MWP0462W27V50KDD | 5000K 62W 7,800 lm 126 lm/W 250W MH |
| MWP0490W27V50KDD | 5000K 90W 11,000 lm 122 lm/W 320W MH Emergency Battery Backup |
| MWP04115W27V50KDD | 5000K 115W 14,500 lm 126 lm/W 400W MH NO. EB-8W/90min-1 |
Pricing and inventory availability are provided by McGregor Lighting.
