McGregor Lighting

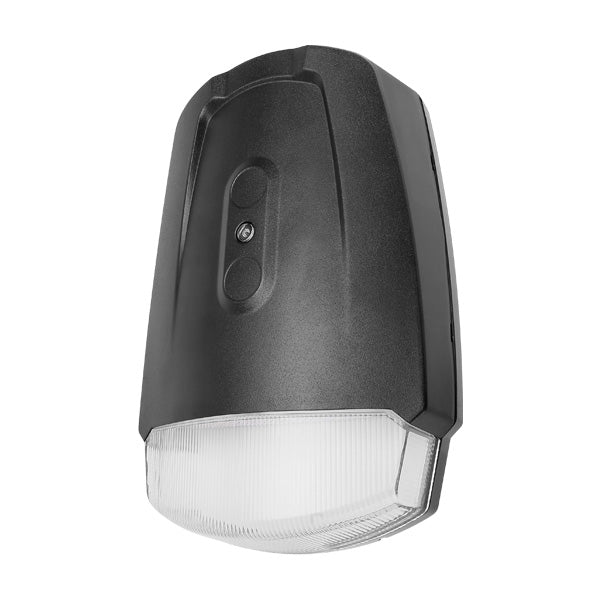

LED Wall Mount - MWM02
Our products are designed to maximize value. Available 10W/ 20W models the MWM02 comes with a field-adjustable CCT switch that’s easily accessed inside the wall mount and allows you to choose between 3000, 4000 and 5000K .It offers the aesthetically pleasing look with the superior performance . This product is an easy to install, high quality and durable LED lighting solution ideal for residential and commercial applications. Features & Benefits: Comes with a field - adjustable CCT switch for 3000K/4000K/5000K selection. Offers scalable lumen packages from 1300 to 2660 Lumens. Has optional frosted or clear diffusers for different lighting effects. Features universal 120 - 277 VAC input voltage with high power factor and low THD. Includes integrated switching photocell and standard emergency battery.
Series Specifications
| Series No. | MWM02 |
|---|---|
| Voltage | 120-277 VAC |
| CCT | 3000K/4000K/5000K Selectable |
| Wattage | 10W, 20W |
| Light Output | 1400lm, 2660lm |
| UL listing | Wet location |
| Operating Temperature | -20°C to 40°C |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Safety, security and any facilities |
| Size | 9.7x6.5x2.5in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MWM0210W27VDDK | 3000K/4000K/5000K 10W 1,400 lm 140 lm/W 100W Incandescent Clear Lens |
Pricing and inventory availability are provided by McGregor Lighting.
Product Dossier
- SKU
- MWM0210W27VDDK
- Brand
- McGregor Lighting
- Fixture Type
- LED Wall Mount
- Price
- $0.00
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
Our products are designed to maximize value. Available 10W/ 20W models the MWM02 comes with a field-adjustable CCT switch that’s easily accessed inside the wall mount and allows you to choose between 3000, 4000 and 5000K .It offers the aesthetically pleasing look with the superior performance . This product is an easy to install, high quality and durable LED lighting solution ideal for residential and commercial applications. Features & Benefits: Comes with a field - adjustable CCT switch for 3000K/4000K/5000K selection. Offers scalable lumen packages from 1300 to 2660 Lumens. Has optional frosted or clear diffusers for different lighting effects. Features universal 120 - 277 VAC input voltage with high power factor and low THD. Includes integrated switching photocell and standard emergency battery.
Series Specifications
| Series No. | MWM02 |
|---|---|
| Voltage | 120-277 VAC |
| CCT | 3000K/4000K/5000K Selectable |
| Wattage | 10W, 20W |
| Light Output | 1400lm, 2660lm |
| UL listing | Wet location |
| Operating Temperature | -20°C to 40°C |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Safety, security and any facilities |
| Size | 9.7x6.5x2.5in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MWM0210W27VDDK | 3000K/4000K/5000K 10W 1,400 lm 140 lm/W 100W Incandescent Clear Lens |
Pricing and inventory availability are provided by McGregor Lighting.
