McGregor Lighting

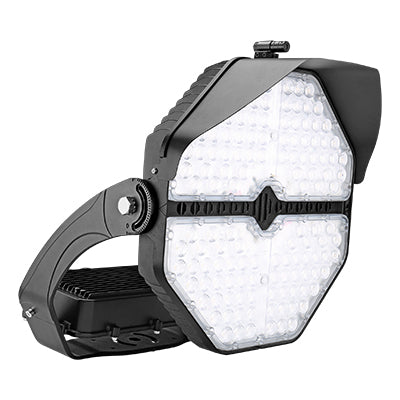

LED Sports Light - MSL02
To meet different client’s lighting needs, the new generation of sports light MSL02 series is the culmination of advanced technologies of integrated blindradiator and reflector optics , which provide industry leading glare reductionwith minimal effect on light output. Ideal for outdoor sports lighting such as municipal, school and semi-professional outdoor sports lighting. MSL02 providesversatile lighting for football, baseball, hockey, basketball and any other outdoor sports lighting. Features & Benefits: Scalable Lumen Packages from 50,000 to 68,000 Lumens. Standard 4000K, 5000K, 5700K (70/80/90 CRI) light engine configurations. Universal 120 – 277VAC or 347 – 480VAC input voltage with 0 – 10V dimming. Sealed die – casting profile with IP65 rating for outdoor use. Estimated 100,000 – hour LED lifespan and DLC Qualified.
Series Specifications
| Series No. | MSL02 |
|---|---|
| Voltage | 120-277V/347V-480V VAC |
| Dimmable | 0-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 4000K/5000K/5700K |
| Power | 360W, 510W |
| Light Output | 51000 lm, 68000 lm |
| UL listing | UL-CA-2118057-1 |
| IP Rating | IP65 |
| Operating Temperature | -40°C to 55°C （-40°F to 131°F） |
| Lifespan | 100,000-hour |
| Warranty | 5 year |
| Application | General and security lighting for large areas Port and rail centers, Airport apron, Interior or exterior sports |
| Mounting | Trunnion |
| Accessory | Yoke Adaptor (Optional), Aiming Sight |
| 350W & 505W & 600W | 20.6x16.3x20.2in |
| 500W&600W&650W&850W | 23.8x18.5x21.63in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MSL02360W27V50KBB44TR | 5000K 360W 51,000 lm 142 lm/W Sqaure Beam |
| MSL02510W27V50KBB44TR | 5000K 510W 68,000 lm 133 lm/W (sold separately) (Optional) (Optional) |
Pricing and inventory availability are provided by McGregor Lighting.
Product Dossier
- SKU
- MSL02360W27V50KBB44TR
- Brand
- McGregor Lighting
- Fixture Type
- LED Sports Light
- Price
- $0.00
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
To meet different client’s lighting needs, the new generation of sports light MSL02 series is the culmination of advanced technologies of integrated blindradiator and reflector optics , which provide industry leading glare reductionwith minimal effect on light output. Ideal for outdoor sports lighting such as municipal, school and semi-professional outdoor sports lighting. MSL02 providesversatile lighting for football, baseball, hockey, basketball and any other outdoor sports lighting. Features & Benefits: Scalable Lumen Packages from 50,000 to 68,000 Lumens. Standard 4000K, 5000K, 5700K (70/80/90 CRI) light engine configurations. Universal 120 – 277VAC or 347 – 480VAC input voltage with 0 – 10V dimming. Sealed die – casting profile with IP65 rating for outdoor use. Estimated 100,000 – hour LED lifespan and DLC Qualified.
Series Specifications
| Series No. | MSL02 |
|---|---|
| Voltage | 120-277V/347V-480V VAC |
| Dimmable | 0-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 4000K/5000K/5700K |
| Power | 360W, 510W |
| Light Output | 51000 lm, 68000 lm |
| UL listing | UL-CA-2118057-1 |
| IP Rating | IP65 |
| Operating Temperature | -40°C to 55°C （-40°F to 131°F） |
| Lifespan | 100,000-hour |
| Warranty | 5 year |
| Application | General and security lighting for large areas Port and rail centers, Airport apron, Interior or exterior sports |
| Mounting | Trunnion |
| Accessory | Yoke Adaptor (Optional), Aiming Sight |
| 350W & 505W & 600W | 20.6x16.3x20.2in |
| 500W&600W&650W&850W | 23.8x18.5x21.63in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MSL02360W27V50KBB44TR | 5000K 360W 51,000 lm 142 lm/W Sqaure Beam |
| MSL02510W27V50KBB44TR | 5000K 510W 68,000 lm 133 lm/W (sold separately) (Optional) (Optional) |
Pricing and inventory availability are provided by McGregor Lighting.
