McGregor Lighting

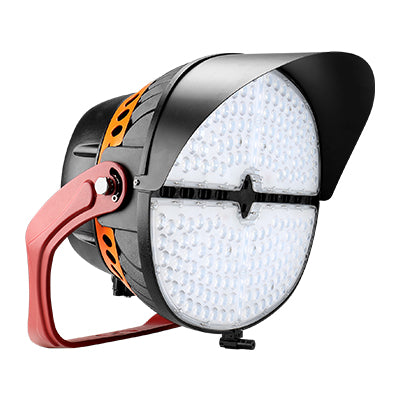

LED Sports Light - MSL01
Designed for High School, Collegiate, Recreational and Professional indoor and outdoor sports venues and outdoor stadium lighting. Heavy Duty, lightweight and durable Die-Cast design for high wear resistance withstands harsh, extreme outdoor conditions. The highly efficient and professional LED sports light, with different NEMA distributions, deliver more foot-candles of illumination to exactly where you need. Features & Benefits: Scalable Lumen Packages from 49,500 to 118,000 Lumens. Standard 4000K, 5000K, 5700K (70/80/90 CRI) light engine configurations. Universal 120 – 277VAC or 347 – 480VAC input voltage with 0 – 10V dimming. Sealed die – casting profile with IP65 protection for outdoor use. Estimated 100,000 – hour LED lifespan and DLC Qualified.
Series Specifications
| Series No. | MSL01 |
|---|---|
| Voltage | 120-277V/277V-480V VAC |
| Dimmable | 0-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 4000K/5000K/5700K |
| Power | 350W, 505W, 600W, 500W, 600W, 650W, 850W |
| Light Output | 51000 lm, 70000 lm, 84000 lm, 71000 lm, 84000 lm, 91000 lm 118000 lm |
| UL listing | UL-US-L359489-11-41100202-6 |
| IP Rating | IP65 |
| Operating Temperature | -40°C to 55°C （-40°F to 131°F） |
| Lifespan | 100,000-hour |
| Warranty | 10 year |
| Application | General and security lighting for large areas Port and rail centers, Airport apron, Interior or exterior sports |
| Mounting | Trunnion |
| Accessory | Black Top Visor (Default), Yoke Adaptor, Aiming Sight Bluetooth Controller, Glare Control Shield (Optional for large size) |
| 350W & 505W & 600W | 20.6x16.3x20.2in |
| 500W&600W&650W&850W | 23.8x18.5x21.63in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MSL01505W27V50KBB44TR | 5000K 505W 72,000 lm 143 lm/W |
| MSL01E600W27V50KBB44TR | 5000K 600W 90,000 lm 150 lm/W |
| MSL01850W48V50KBB44TR | 5000K 850W 120,000 lm 141 lm/W |
Pricing and inventory availability are provided by McGregor Lighting.
Product Dossier
- SKU
- MSL01505W27V50KBB44TR
- Brand
- McGregor Lighting
- Fixture Type
- LED Sports Light
- Price
- $0.00
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
Designed for High School, Collegiate, Recreational and Professional indoor and outdoor sports venues and outdoor stadium lighting. Heavy Duty, lightweight and durable Die-Cast design for high wear resistance withstands harsh, extreme outdoor conditions. The highly efficient and professional LED sports light, with different NEMA distributions, deliver more foot-candles of illumination to exactly where you need. Features & Benefits: Scalable Lumen Packages from 49,500 to 118,000 Lumens. Standard 4000K, 5000K, 5700K (70/80/90 CRI) light engine configurations. Universal 120 – 277VAC or 347 – 480VAC input voltage with 0 – 10V dimming. Sealed die – casting profile with IP65 protection for outdoor use. Estimated 100,000 – hour LED lifespan and DLC Qualified.
Series Specifications
| Series No. | MSL01 |
|---|---|
| Voltage | 120-277V/277V-480V VAC |
| Dimmable | 0-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 4000K/5000K/5700K |
| Power | 350W, 505W, 600W, 500W, 600W, 650W, 850W |
| Light Output | 51000 lm, 70000 lm, 84000 lm, 71000 lm, 84000 lm, 91000 lm 118000 lm |
| UL listing | UL-US-L359489-11-41100202-6 |
| IP Rating | IP65 |
| Operating Temperature | -40°C to 55°C （-40°F to 131°F） |
| Lifespan | 100,000-hour |
| Warranty | 10 year |
| Application | General and security lighting for large areas Port and rail centers, Airport apron, Interior or exterior sports |
| Mounting | Trunnion |
| Accessory | Black Top Visor (Default), Yoke Adaptor, Aiming Sight Bluetooth Controller, Glare Control Shield (Optional for large size) |
| 350W & 505W & 600W | 20.6x16.3x20.2in |
| 500W&600W&650W&850W | 23.8x18.5x21.63in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MSL01505W27V50KBB44TR | 5000K 505W 72,000 lm 143 lm/W |
| MSL01E600W27V50KBB44TR | 5000K 600W 90,000 lm 150 lm/W |
| MSL01850W48V50KBB44TR | 5000K 850W 120,000 lm 141 lm/W |
Pricing and inventory availability are provided by McGregor Lighting.
