McGregor Lighting

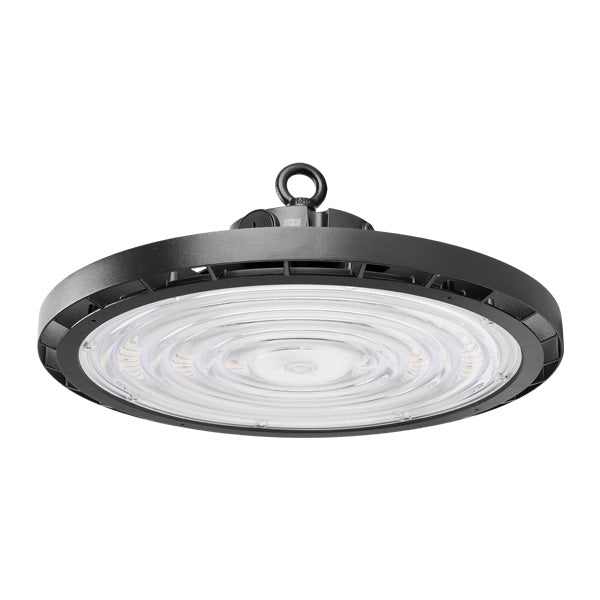

LED High Bay - MHB16
A cost-effective UFo High Bay that fit within your budget, excelling in both performance and aesthetics, while offering strong adaptability to various environ-ments with its exquisite profile. This compact and lightweight fixture is designed for exceptional durabili ty and practicality, capable of replacing a 1000W MH. The Beam Angle Field-Adjustable MHB16 is an idea choice for illuminating factories, warehouses, gymna-siums, and other outdoor areas. Features & Benefits： Durable die-cast aluminum housing and polycarbonate lens. Advanced aesthetic design with a screw-free optical lens for a clean and uncluttered look. Offer 2 selectable CCT (40K/50K), with the option for 3 selectable CCT (30K/40K/50K) Three adjustable Wattage levels available for each models. Optics Adjustable (70°/90°/110°) 0-10V dimming driver standard for 10% to 100% dimming 6KV surge protection. Operating temperature is -40°C to 55°C.
Series Specifications
| Series No. | MHB16 |
|---|---|
| Voltage | 120-277V, 120-347V, 277-480V |
| Dimmable | 0-10V dimming |
| CCT | 3000K/4000K/5000K |
| Beam Angle | 70°, 90°, 110° |
| Wattage | 150W, 200W, 250W |
| Light Output | Max 41000lm |
| Operating Temperature | -40°C to 55°C |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Warehouses, Industrial, Retail |
| Mounting | Hanging Ring Mount，Conduit Pendant Mount，U-Bracket Mount |
| Accessory | Emergency Battery, Plug-in PIR sensor, U-Bracket |
| 150W | Ø12.3 in x 6.26 in |
| 200W | Ø14.18 in x 6.28 in |
| 250W | Ø15.5 in x 6.4in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MHB16150W27VDDKBAD | 3000K/4000K/5000K Max 150W Max 24,300 lm 162 lm/W 250W MH |
| MHB16200W27VDDKBAD | 3000K/4000K/5000K Max 200W Max 32,300 lm 162 lm/W 400W MH |
| MHB16250W27VDDKBAD | 3000K/4000K/5000K Max 250W Max 41,000 lm 164 lm/W 750W MH |
Pricing and inventory availability are provided by McGregor Lighting.
Product Dossier
- SKU
- MHB16150W27VDDKBAD
- Brand
- McGregor Lighting
- Fixture Type
- LED High Bay
- Price
- $0.00
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
A cost-effective UFo High Bay that fit within your budget, excelling in both performance and aesthetics, while offering strong adaptability to various environ-ments with its exquisite profile. This compact and lightweight fixture is designed for exceptional durabili ty and practicality, capable of replacing a 1000W MH. The Beam Angle Field-Adjustable MHB16 is an idea choice for illuminating factories, warehouses, gymna-siums, and other outdoor areas. Features & Benefits： Durable die-cast aluminum housing and polycarbonate lens. Advanced aesthetic design with a screw-free optical lens for a clean and uncluttered look. Offer 2 selectable CCT (40K/50K), with the option for 3 selectable CCT (30K/40K/50K) Three adjustable Wattage levels available for each models. Optics Adjustable (70°/90°/110°) 0-10V dimming driver standard for 10% to 100% dimming 6KV surge protection. Operating temperature is -40°C to 55°C.
Series Specifications
| Series No. | MHB16 |
|---|---|
| Voltage | 120-277V, 120-347V, 277-480V |
| Dimmable | 0-10V dimming |
| CCT | 3000K/4000K/5000K |
| Beam Angle | 70°, 90°, 110° |
| Wattage | 150W, 200W, 250W |
| Light Output | Max 41000lm |
| Operating Temperature | -40°C to 55°C |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Warehouses, Industrial, Retail |
| Mounting | Hanging Ring Mount，Conduit Pendant Mount，U-Bracket Mount |
| Accessory | Emergency Battery, Plug-in PIR sensor, U-Bracket |
| 150W | Ø12.3 in x 6.26 in |
| 200W | Ø14.18 in x 6.28 in |
| 250W | Ø15.5 in x 6.4in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MHB16150W27VDDKBAD | 3000K/4000K/5000K Max 150W Max 24,300 lm 162 lm/W 250W MH |
| MHB16200W27VDDKBAD | 3000K/4000K/5000K Max 200W Max 32,300 lm 162 lm/W 400W MH |
| MHB16250W27VDDKBAD | 3000K/4000K/5000K Max 250W Max 41,000 lm 164 lm/W 750W MH |
Pricing and inventory availability are provided by McGregor Lighting.
