McGregor Lighting

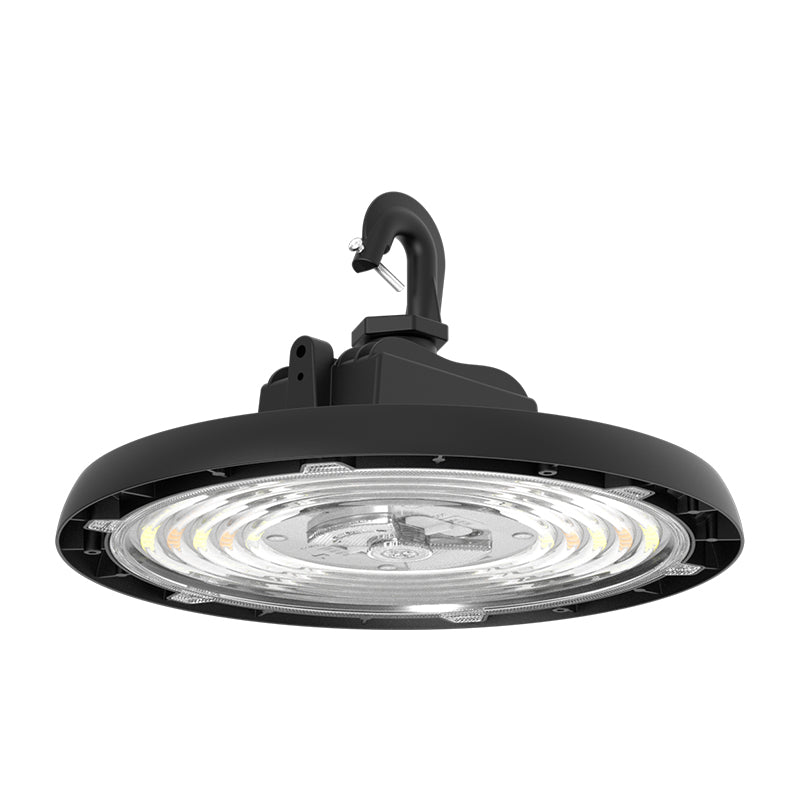

LED High Bay - MHB10
MHB10 continues the compact design concept of its predecessor, MHB08, making full use of LED technology and excellent heat dissipation management. While ensuring product versatility and high quality, MHB10 also reduces budget costs. MHB10 is a rare circular high bay with DIP switches on the surface of the luminaire, supporting on-site adjustment of light output and color temperature without the need for any disassembly. The adjustment can be easily completed by simply flipping the DIP switches, greatly enhancing product flexibility and convenience Features & Benefits: Durable die-cast aluminum housing and polycarbonate lens. Advanced aesthetic design with a screw-free optical lens for a clean and uncluttered look. CRI>80. 0-10V dimming driver standard for 10% to 100% dimming. 6KV surge protection. Operating temperature is -40℃ to 50℃.
Series Specifications
| Series No. | MHB10 |
|---|---|
| Voltage | 120-277V or 120-347VAC or 347/480V |
| Dimmable | 0-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 3000K/4000K/5000K |
| Power | 160W, 205W |
| Light Output | 27500 lm, 31000 lm |
| UL listing | UL-US-2353780-0 |
| IP Rating | IP65 |
| Operating Temperature | -40°C to 50°C ( -40°F to 122°F ) |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Warehouses, Industrial, Retail |
| Mounting | Hook mount, Pendant mount and surface mounting |
| Accessory | Emergency Battery, External PIR sensor, U-Bracket |
| 160W | Ø11inx7.3in |
| 205W | Ø12inx7.5in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MHB10160W27VDDKBAD | 3000K/4000K/5000K Max 160W Max 24,500 lm 153 lm/W 250W MH |
| MHB10205W27VDDKBAD | 3000K/4000K/5000K Max 205W Max 31,000 lm 151 lm/W 400W MH |
Pricing and inventory availability are provided by McGregor Lighting.
Product Dossier
- SKU
- MHB10160W27VDDKBAD
- Brand
- McGregor Lighting
- Fixture Type
- LED High Bay
- Price
- $0.00
- Availability
- Available to order
