McGregor Lighting

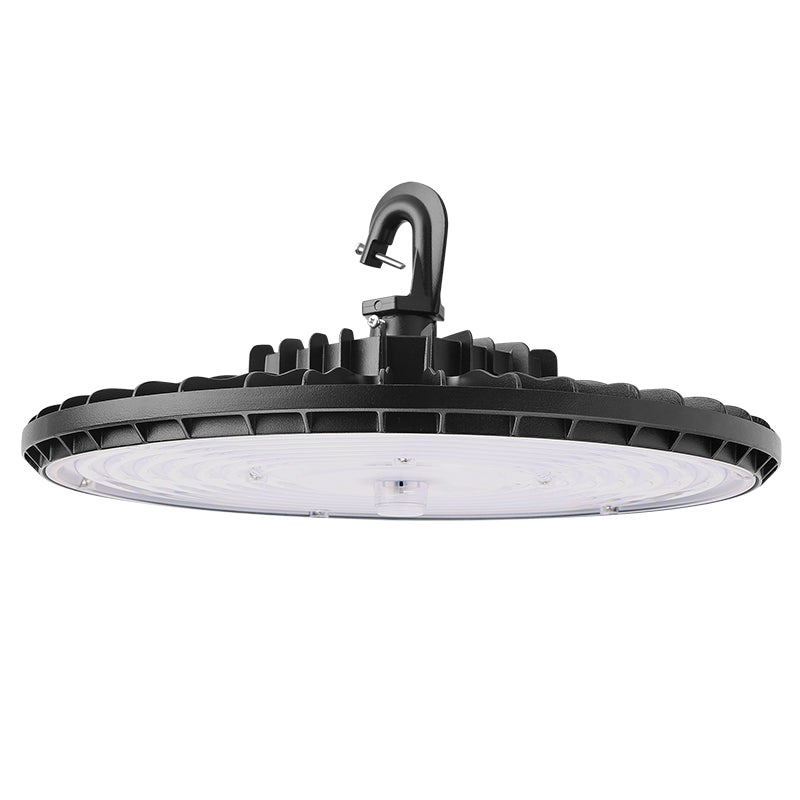

LED High Bay - MHB08
MESTER’s newly released compact High Bay MHB08 will provide you with a new high bay lighting experience: high output, low glare (compliant with DLC premium requirements), and supports multiple installation methods (hook, pendant, surface mounting), making the installation of the luminaire easy, simple, and safe. The 3-second plug-in sensor option provides an unprecedented speed experience for configuration replacement. MHB08′s unique feature – adjustable power and color temperature (power adjustment: 100%, 80%, 60%, 40%; color temperature adjustment: three CCTs adjustments of 3000K, 4000K, 5000K, or two CCTs adjustments of 4000K, 5000K) – will effectively under your budget and reduce inventory pressure. Features & Benefits: Compact High bay, quick and easy to install. 6KV surge protection. Offer 2 selectable CCT (40K/50K), with the option for 3 selectable CCT (30K/40K/50K). Four adjustable Wattage levels available for each model. 0-10V dimming driver standard for 10% to 100% dimming. Operating temperature is -40˚C to 50˚C.
Series Specifications
| Series No. | MHB08 |
|---|---|
| Voltage | 120-277V |
| Dimmable | 0-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 3000K/4000K/5000K |
| Power | 100W, 160W, 210W |
| Light Output | 15000 lm, 25000 lm, 32000 lm |
| UL listing | UL-US-2301661-3 |
| IP Rating | IP65 |
| Operating Temperature | -40°C to 50°C ( -40°F to 122°F ) |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Warehouses, Industrial, Retail |
| Mounting | Hook mount, Pendant mount and surface mounting |
| Accessory | Emergency Battery, External PIR sensor, U-Bracket |
| 100W | Ø10.5inx6.2in |
| 160W | Ø11.8inx6.3in |
| 210W | Ø14.1inx6.3in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MHB08100W27VDDKBAD | 3000K/4000K/5000K Max 100W Max 15,000 lm 150 lm/W 250W MH Max 50˚C |
| MHB08150W27VDDKBAD | 3000K/4000K/5000K Max 150W Max 24,000 lm 160 lm/W 250W MH Max 50˚C |
| MHB08160W27VDDKBAD | 3000K/4000K/5000K Max 160W Max 27000 lm 169 lm/W 250W MH Max 45˚C Emergency Battery |
| MHB08210W27VDDKBAD | 3000K/4000K/5000K Max 210W Max 32,000 lm 152 lm/W 400W MH Max 50˚C 210W&230W&235W: 25W, 3500lm, 90min |
| MHB08230W27VDDKBAD | 3000K/4000K/5000K Max 230W Max 36,000 lm 157 lm/W 750W MH Max 50˚C |
| MHB08235W27V50KBAD | 5000K Max 235W Max 40,000 lm 170 lm/W 750W MH Max 45˚C Use for surface mounting |
Pricing and inventory availability are provided by McGregor Lighting.
