McGregor Lighting

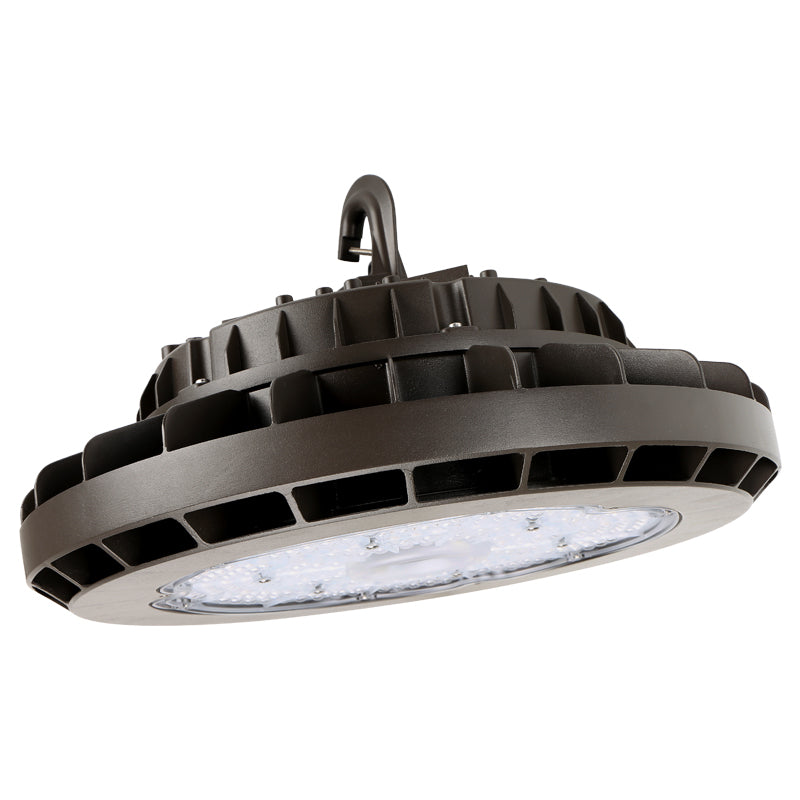

LED High Bay - MHB04
High bay is the ideal light source for energy-efficient, low maintenance illumination in large spaces. Designed with durability and functionality in mind, the LED Round High Bay lighting options are versatile and suited to satisfy most all long-term lighting needs. The MHB04 is ideal for light industrial applications, and is your LED replacement for up to 400W MH fixtures. The MHB04 also excels in large indoor lighting. Optional built-in motion sensor is both convenient and energy efficient, and ultra-high light efficiency exceeds your expectations. Features & Benefits: Optional 90 or 120 - degree lens for adjustable light range and intensity. 1 - 10V dimming standard for a wide dimming range from 100% to 10%. Multiple mounting options: hook and conduit pendant for different applications. Optional motion sensor for enhanced energy savings and security. High luminous efficacy with LPW up to 150lm/W and DLC qualified (except 100W).
Series Specifications
| Series No. | MHB04 |
|---|---|
| Voltage | 120-277 VAC or 347-480 VAC |
| Dimmable | 1-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 4000K/5000K |
| Power | 100W, 135W, 175W, 200W |
| Light Output | 14000 lm, 19400 lm, 25600 lm, 30000 lm |
| UL listing | X-UL-US-L359489-11-52409102-1 |
| Operating Temperature | -40°C to 55°C ( -40°F to 131°F ) |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Warehouses, Industrial, Manufacturing |
| Mounting | Conduit pendant, Hook or J-box mounting |
| Accessory | PIR Motion Sensor (Optional), Emergency Box |
| 100W&135W&175W&200W | Ø15.354x14.20in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MHB04100W27V50KD | 5000K 100W 14,000 lm 140 lm/W 250W MH |
| MHB04135W27V50KD | 5000K 135W 19,400 lm 144 lm/W 250W MH Emergency Box |
| MHB04175W27V50KD | 5000K 175W 25,600 lm 146 lm/W 400W MH USE：2000lm 90min. |
| MHB04200W27V50KD | 5000K 200W 29,800 lm 149 lm/W 400W MH |
Pricing and inventory availability are provided by McGregor Lighting.
