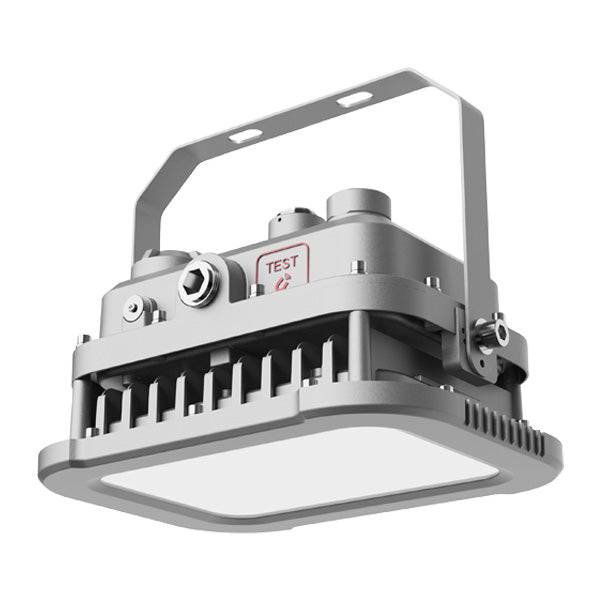

LED Hazardous Location Square luminaires - MHS01
MESTER’s MHS01 delivers versatile solutions, efficient illumination, and outstanding stability for complex and hazardous workscenarios. With an ingenious design and a solid internal structure, it readily accommodates diverse installation needs, fittingseamlessly into industrial plants and port docks alike.The durable cast aluminum housing, enhanced by a long-lastingepoxy coating, paired with a high-quality tempered glass lens,grants it exceptional weather resistance and a prolongedlifespan, providing a reliable lighting option that endures. Features&Benifits： The MHS01 has a durable cast - aluminum housing, IP66 & IK10 ratings, enduring harsh conditions. It offers 3,250 - 33,000lm output, up to 181Lm/W, and uniform lighting. With multiple mounts like trunnion, arm, and hook, it’s highly adaptable. It has a 100,000 - hour LED lifespan 5 - year warranty.
Series Specifications
| Series No. | MHS01 |
|---|---|
| NEC Protections | Class I Division2, Groups A,B,C,DClass II Division1, Groups E,F,GClass II Division2, Groups F,GClass III |
| Voltage | 120-347VAC or 277-480VAC |
| Dimmable | 0-10V Dimming |
| Wattage | 60W,100W,200W |
| CCT | 2700K, 4000K, 5000K Selectable |
| CRI | >70 |
| Waterproof level | IP66 |
| Operating Temperature | -40°C to 60°C |
| Lifespan | 100,000 hours |
| Warranty | 5 year |
| Application | Oil and gas rigs, petrochemical plants, paint spray booths, and other hazardous location |
| Mounting | Trunnion mount/U-bracket mount , Arm mount , Hook mount, Wall mount with suction base(90°), Wall mount with suction base(120°), Tube hanging mount |
| 60W | L10.86" × W8.26" × H9.13" |
| 100W | L12.65" × W10.37" × H9.36" |
| 200W | L14.54" × W10.65" × H9.57" |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MHS0180W27V50KB | 5000K 80W 12,500 lm 156lm/W 175W MH |
| MHS01100W27V50KB | 5000K 100W 15,500 lm 155lm/W 250W MH |
| MHS01140W27V50KB | 5000K 140W 23,500 lm 168lm/W 250W MH |
| MHS01160W27V50KB | 5000K 160W 26,100 lm 163lm/W 400W MH |
| MHS01200W27V50KB | 5000K 200W 31,600 lm 158lm/W 400W MH |
Pricing and inventory availability are provided by McGregor Lighting.
Product Dossier
- SKU
- MHS0180W27V50KB
- Brand
- McGregor Lighting
- Fixture Type
- LED Hazardous Location Square luminaires
- Price
- $0.00
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
MESTER’s MHS01 delivers versatile solutions, efficient illumination, and outstanding stability for complex and hazardous workscenarios. With an ingenious design and a solid internal structure, it readily accommodates diverse installation needs, fittingseamlessly into industrial plants and port docks alike.The durable cast aluminum housing, enhanced by a long-lastingepoxy coating, paired with a high-quality tempered glass lens,grants it exceptional weather resistance and a prolongedlifespan, providing a reliable lighting option that endures. Features&Benifits： The MHS01 has a durable cast - aluminum housing, IP66 & IK10 ratings, enduring harsh conditions. It offers 3,250 - 33,000lm output, up to 181Lm/W, and uniform lighting. With multiple mounts like trunnion, arm, and hook, it’s highly adaptable. It has a 100,000 - hour LED lifespan 5 - year warranty.
Series Specifications
| Series No. | MHS01 |
|---|---|
| NEC Protections | Class I Division2, Groups A,B,C,DClass II Division1, Groups E,F,GClass II Division2, Groups F,GClass III |
| Voltage | 120-347VAC or 277-480VAC |
| Dimmable | 0-10V Dimming |
| Wattage | 60W,100W,200W |
| CCT | 2700K, 4000K, 5000K Selectable |
| CRI | >70 |
| Waterproof level | IP66 |
| Operating Temperature | -40°C to 60°C |
| Lifespan | 100,000 hours |
| Warranty | 5 year |
| Application | Oil and gas rigs, petrochemical plants, paint spray booths, and other hazardous location |
| Mounting | Trunnion mount/U-bracket mount , Arm mount , Hook mount, Wall mount with suction base(90°), Wall mount with suction base(120°), Tube hanging mount |
| 60W | L10.86" × W8.26" × H9.13" |
| 100W | L12.65" × W10.37" × H9.36" |
| 200W | L14.54" × W10.65" × H9.57" |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MHS0180W27V50KB | 5000K 80W 12,500 lm 156lm/W 175W MH |
| MHS01100W27V50KB | 5000K 100W 15,500 lm 155lm/W 250W MH |
| MHS01140W27V50KB | 5000K 140W 23,500 lm 168lm/W 250W MH |
| MHS01160W27V50KB | 5000K 160W 26,100 lm 163lm/W 400W MH |
| MHS01200W27V50KB | 5000K 200W 31,600 lm 158lm/W 400W MH |
Pricing and inventory availability are provided by McGregor Lighting.
