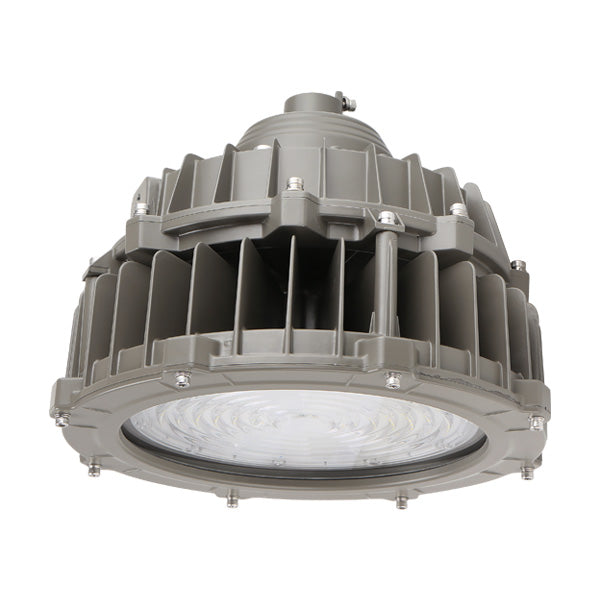

LED Hazardous Location round luminaires - MHR01
At 150 lumens per watt with 3 different beam patterns, the HR Series brings design, excellence, and durability to harsh and hazardous rated lighting.Various installation ways for different applications. Explosion proof, the HR is suitable where flammable gases, vapors and combustible dusts are present. Applications include oil and gas rigs, petrochemica plants, paint spray booths, and other hazardous location. Features & Benefits: Has 3 beam patterns (60°, 90°, 120°) for versatile lighting applications. Offers scalable lumen packages from 10,000 to 30,000 Lumens. Comes with 0 – 10V/PWM/Rx 3-in-1 dimming and universal input voltage (120 – 277VAC or 347 – 480VAC). Features multiple installation options like trunnion, wall, pendant, round pole and ceiling mounts. Made of robust cast aluminum housing with low copper content, resistant to shock and vibration.
Series Specifications
| Series No. | MHR01 |
|---|---|
| NEC Protections | Class I Division2, Groups A,B,C,DClass II Division1, Groups E,F,GClass II Division2, Groups F,GClass III |
| Voltage | 120-277 VAC or 347-480 VAC |
| Dimmable | 0-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 3000K/4000K/5000K/5700K |
| Power | 60W, 70W, 80W, 90W, 100W, 120W, 140W, 160W, 180W, 200W |
| Light Output | 10500lm, 11500lm, 12500lm, 1400lm, 15500lm, 20500lm, 23500lm, 26000lm, 29000lm, 31500lm |
| Operating Temperature | -40°C to 65°C ( -40°F to 149°F ) |
| Lifespan | 100,000 hours |
| Warranty | 5 year |
| Application | Oil and gas rigs, petrochemical plants, paint spray booths, and other hazardous location |
| Mounting | Trunnion mount, Wall mount , Pendant mount , Round pole mount , Ceiling mount |
| Size | Ø13inx10.2in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MHR0160W27V50KB | 5000K 60W 10,500 lm 175lm/W 175W MH |
| MHR0170W27V50KB | 5000K 70W 11,500 lm 164lm/W 175W MH |
| MHR0180W27V50KB | 5000K 80W 12,500 lm 156lm/W 175W MH |
| MHR0190W27V50KB | 5000K 90W 14,000 lm 155lm/W 175W MH |
| MHR01100W27V50KB | 5000K 100W 15,500 lm 154lm/W 250W MH |
| MHR01120W27V50KB | 5000K 120W 20,000 lm 167lm/W 250W MH |
| MHR01140W27V50KB | 5000K 140W 23,000 lm 164lm/W 250W MH |
| MHR01160W27V50KB | 5000K 160W 25,500 lm 159lm/W 400W MH |
| MHR01180W27V50KB | 5000K 180W 28,500 lm 158lm/W 400W MH |
| MHR01200W27V50KB | 5000K 200W 31,500 lm 157lm/W 400W MH |
Pricing and inventory availability are provided by McGregor Lighting.
