McGregor Lighting

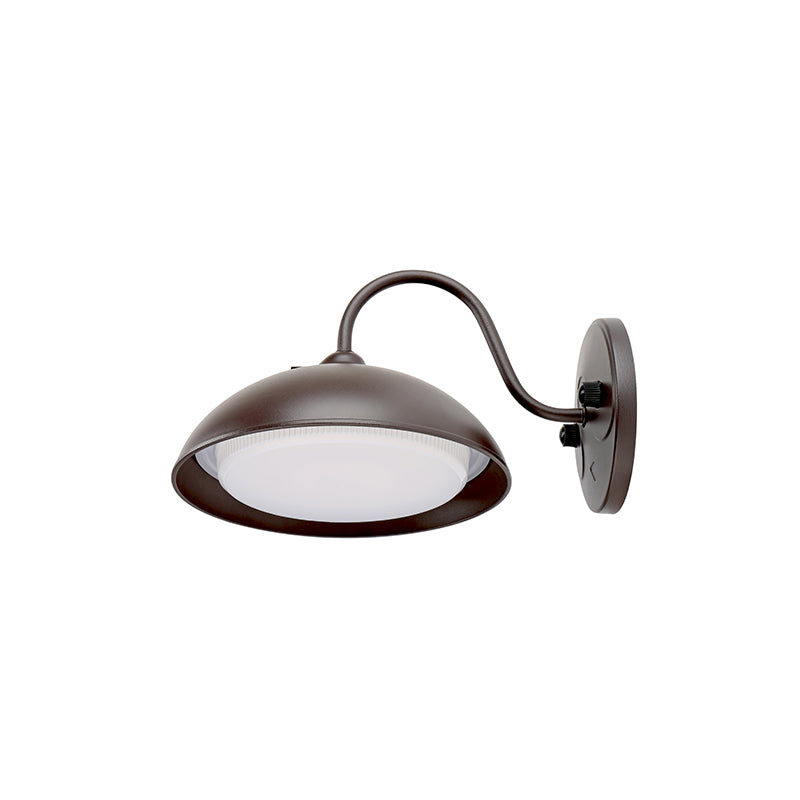

LED Gooseneck Light - MGN01
MESTER new Gooseneck Light is a unique decorative lighting fixture that allows you to update the look of your building. Elegant and curved goose neck arm, simple and low-key appearance design, can be well applied to a variety of architectural styles. Installation is quick and easy, and the 28W has a strong function that can support 5 color temperature adjustment. Features & Benefits: Has a durable surface coating for extended fixture lifespan. Offers scalable lumen packages from 1000 to 3000 Lumens. Features CCT adjustability (2700K – 6500K for 28W, 3 fixed CCTs for 12W). Comes with an integrated photocell for automatic light control. Has a 5VA rated PC housing for 12W and die – cast housing for 28W, suitable for wet locations.
Series Specifications
| Series No. | MGN01 |
|---|---|
| Voltage | 120V or 120-277VAC |
| Dimmable | 0-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 3000K/4000K/5000K |
| Power | 12W, 28W |
| Light Output | 1000 lm, 3000 lm |
| UL listing | UL-US-2353780-0 |
| Operating Temperature | -40°C to 40°C（-40°F to 104°F） |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | walls, courtyards, gates and indoor places |
| Mounting | Conduit pendant or surface mounting |
| Accessory | Sensor - Screw on (Optional), Emergency Box (Optional) |
| 12W/28W | Ø8.1x10.7x6.4in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MGN0112W27V50KDPY | 5000K 12W 1,000 lm 83 lm/W 50W MH FD15W27V50KBDB77 5000K 15W 1,500 lm 100 lm/W 50W MH |
| MGN0128W27VDDKDPY | 2700K/3000K 28W 3,000 lm 107 lm/W 100W MH |
Pricing and inventory availability are provided by McGregor Lighting.
Product Dossier
- SKU
- MGN0112W27V50KDPY
- Brand
- McGregor Lighting
- Fixture Type
- LED Gooseneck Light
- Price
- $0.00
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
MESTER new Gooseneck Light is a unique decorative lighting fixture that allows you to update the look of your building. Elegant and curved goose neck arm, simple and low-key appearance design, can be well applied to a variety of architectural styles. Installation is quick and easy, and the 28W has a strong function that can support 5 color temperature adjustment. Features & Benefits: Has a durable surface coating for extended fixture lifespan. Offers scalable lumen packages from 1000 to 3000 Lumens. Features CCT adjustability (2700K – 6500K for 28W, 3 fixed CCTs for 12W). Comes with an integrated photocell for automatic light control. Has a 5VA rated PC housing for 12W and die – cast housing for 28W, suitable for wet locations.
Series Specifications
| Series No. | MGN01 |
|---|---|
| Voltage | 120V or 120-277VAC |
| Dimmable | 0-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 3000K/4000K/5000K |
| Power | 12W, 28W |
| Light Output | 1000 lm, 3000 lm |
| UL listing | UL-US-2353780-0 |
| Operating Temperature | -40°C to 40°C（-40°F to 104°F） |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | walls, courtyards, gates and indoor places |
| Mounting | Conduit pendant or surface mounting |
| Accessory | Sensor - Screw on (Optional), Emergency Box (Optional) |
| 12W/28W | Ø8.1x10.7x6.4in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MGN0112W27V50KDPY | 5000K 12W 1,000 lm 83 lm/W 50W MH FD15W27V50KBDB77 5000K 15W 1,500 lm 100 lm/W 50W MH |
| MGN0128W27VDDKDPY | 2700K/3000K 28W 3,000 lm 107 lm/W 100W MH |
Pricing and inventory availability are provided by McGregor Lighting.
