McGregor Lighting

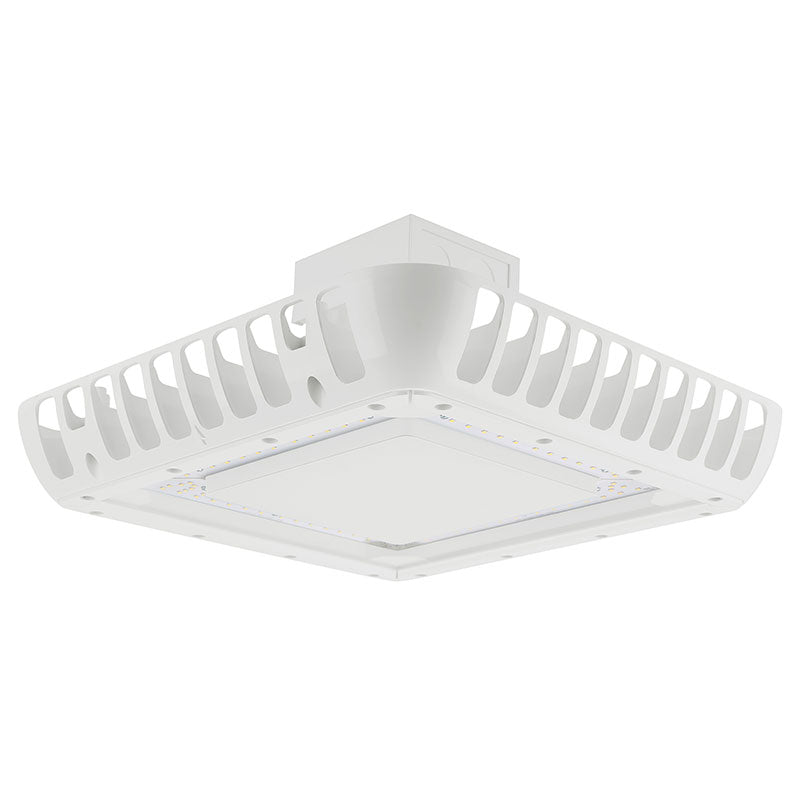

LED Gas Station Canopy - MGC01
MESTER Gas Station Canopy Light is an ideal solution for budget-friendly, canopy lighting. It can be used in commercial buildings, parking lot structures, gas stations, secure entryways, exterior canopies and many other applications. When replacing up to 400W MH, it can save about 86% of energy. Excellent heat dissipation structure design features and precision optical design provide a good lighting effect with a lifetime of up to 50,000 hours accompanied by excellent optical performance. Features & Benefits: Die-cast aluminum housing with corrosion-resistant powder coating for optimal heat management and durability. Scalable Lumen Packages from 10,000 to 23,000 Lumens with 4000K/5000K (70 CRI) options. Universal 120-277V/347/480VAC input voltage with 0-10V dimming and wattage selectable (100%/80%/60%/40%). Optional Type III light distribution for corner illumination and reduced light waste. 50,000-hour LED lifespan, five-year warranty, and UL cUL wet location certification.
Series Specifications
| Series No. | MGC01 |
|---|---|
| Voltage | 120-277 VAC |
| Dimmable | 1-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 4000K/5000K |
| Power | 65W,98W,100W,135W,150W |
| Light Output | from 10,000 to 23,000 lumens |
| UL listing | Wet location |
| Operating Temperature | -40°C to 50°C (-40˚F - + 122˚F) |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Retail and grocery, Parking structures, Walkways |
| Mounting | Surface mounting |
| Accessory | Power controller, Microwave Sensor |
| 65W/98W | 15.04x15.04x8.78in |
| 100W/135W/150W | 15.75x15.75x8.78in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MGC01100W27V50KWCD | 5000K Max 100W Max 15,000 lm 150 lm/W 250W MH |
| MGC01150W27V50KWCD | 5000K Max 150W Max 23,500 lm 157 lm/W 320W MH |
| MGC01160W27V50KWCD | 5000K Max 160W Max 23,500 lm 147 lm/W 400W MH |
