McGregor Lighting

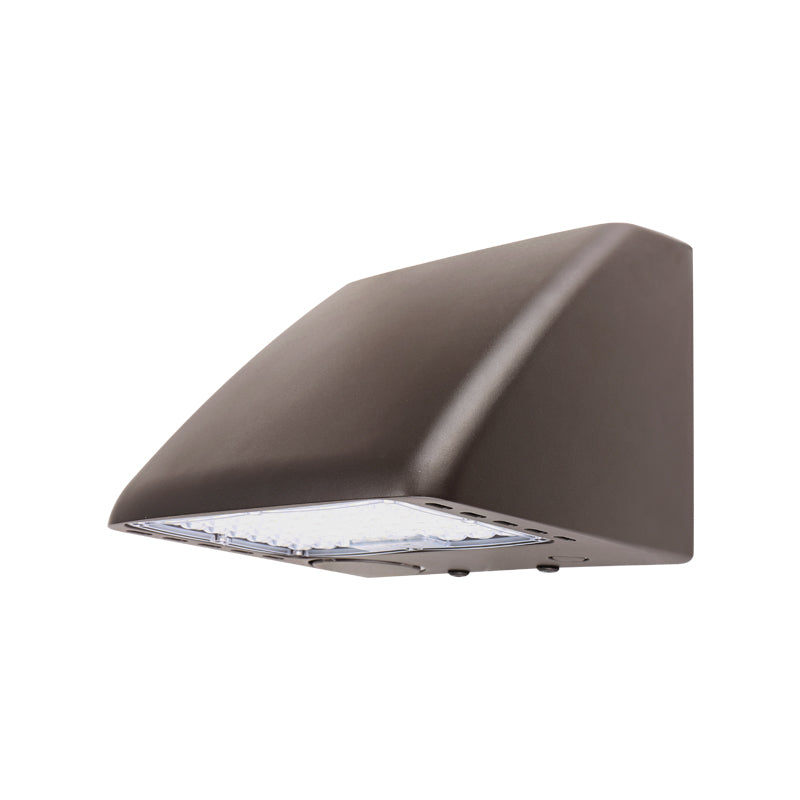

LED Full Cutoff Wall Pack - MWP13
Cast in a modern and low-profile design, MESTER MWP13 series is easily customized to fit every building’s design aesthetic and a mix of architectural styling and energy savings. Available in two sizes, the MWP13 family delivers 3,800 to 13,800 lumens with a wide, uniform distribution. It’s ideal for illuminating commercial office buildings,warehouses, campuses, shopping malls and other office complexes. Features & Benefits: Rugged die-cast housing and UV stabilized polycarbonate optic lens. Four adjustable Wattage levels available for each models. Color Temperature adjustable: 3000K, 4000K, 5000K. Universal 120-277VAC input voltage. 0-10V dimming driver standard for 10% to 100% dimming. Operating temperature is -40˚C to 45˚C.
Series Specifications
| Series No. | MWP13 |
|---|---|
| Voltage | 120-277 VAC |
| Dimmable | 1-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 4000K/5000K |
| Power | 27W, 45W, 70W, 100W |
| Light Output | 3600 lm, 5800 lm, 9100 lm, 13400 lm |
| UL listing | UL-CA-2118057-1 |
| Operating Temperature | -40°C to 40°C ( -40°F to 104°F ) |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Pathway, Building entryways, Perimeter lighting |
| Mounting | Junction box (No need to open driver box) |
| Accessory | Photocell - Button (Optional), Occupancy Sensor (Optional) Emergency Battery Backup, Surface-Mounted Back Box |
| 25W&27W&45W | 8.8x7.2x6.5in |
| 35W&50W&70W&100W | 14.2x7.4x6.6in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MWP1327W27V50KD | 5000K 27W 3,600 lm 133 lm/W 100W MH 12-24VDC input SKU CCT Select Power Select Light Output Efficacy Replaces by requesting |
| MWP1345W27V50KD | 5000K 45W 5,800 lm 129 lm/W 175W MH |
| MWP1370W27V50KD | 5000K 70W 9,100 lm 130 lm/W 250W MH USE: Sensor can be pre-installed |
| MWP13100W27V50KD | 5000K 100W 13,400 lm 134 lm/W 400W MH |
| MWP1345W27VDDKDAD | 3000K/4000K/5000K Max 45W Max 7,000 lm 156 lm/W 250W MH Power and CCT controller USE: The wattage and CCT can be |
| MWP1395W27VDDKDAD | 3000K/4000K/5000K Max 95W Max 15,000 lm 158 lm/W 400W MH USE: The wattage and CCT can be changed by switch selection |
Pricing and inventory availability are provided by McGregor Lighting.
Product Dossier
- SKU
- MWP1327W27V50KD
- Brand
- McGregor Lighting
- Fixture Type
- LED Full Cutoff Wall Pack
- Price
- $0.00
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
Cast in a modern and low-profile design, MESTER MWP13 series is easily customized to fit every building’s design aesthetic and a mix of architectural styling and energy savings. Available in two sizes, the MWP13 family delivers 3,800 to 13,800 lumens with a wide, uniform distribution. It’s ideal for illuminating commercial office buildings,warehouses, campuses, shopping malls and other office complexes. Features & Benefits: Rugged die-cast housing and UV stabilized polycarbonate optic lens. Four adjustable Wattage levels available for each models. Color Temperature adjustable: 3000K, 4000K, 5000K. Universal 120-277VAC input voltage. 0-10V dimming driver standard for 10% to 100% dimming. Operating temperature is -40˚C to 45˚C.
Series Specifications
| Series No. | MWP13 |
|---|---|
| Voltage | 120-277 VAC |
| Dimmable | 1-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 4000K/5000K |
| Power | 27W, 45W, 70W, 100W |
| Light Output | 3600 lm, 5800 lm, 9100 lm, 13400 lm |
| UL listing | UL-CA-2118057-1 |
| Operating Temperature | -40°C to 40°C ( -40°F to 104°F ) |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Pathway, Building entryways, Perimeter lighting |
| Mounting | Junction box (No need to open driver box) |
| Accessory | Photocell - Button (Optional), Occupancy Sensor (Optional) Emergency Battery Backup, Surface-Mounted Back Box |
| 25W&27W&45W | 8.8x7.2x6.5in |
| 35W&50W&70W&100W | 14.2x7.4x6.6in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MWP1327W27V50KD | 5000K 27W 3,600 lm 133 lm/W 100W MH 12-24VDC input SKU CCT Select Power Select Light Output Efficacy Replaces by requesting |
| MWP1345W27V50KD | 5000K 45W 5,800 lm 129 lm/W 175W MH |
| MWP1370W27V50KD | 5000K 70W 9,100 lm 130 lm/W 250W MH USE: Sensor can be pre-installed |
| MWP13100W27V50KD | 5000K 100W 13,400 lm 134 lm/W 400W MH |
| MWP1345W27VDDKDAD | 3000K/4000K/5000K Max 45W Max 7,000 lm 156 lm/W 250W MH Power and CCT controller USE: The wattage and CCT can be |
| MWP1395W27VDDKDAD | 3000K/4000K/5000K Max 95W Max 15,000 lm 158 lm/W 400W MH USE: The wattage and CCT can be changed by switch selection |
Pricing and inventory availability are provided by McGregor Lighting.
