McGregor Lighting

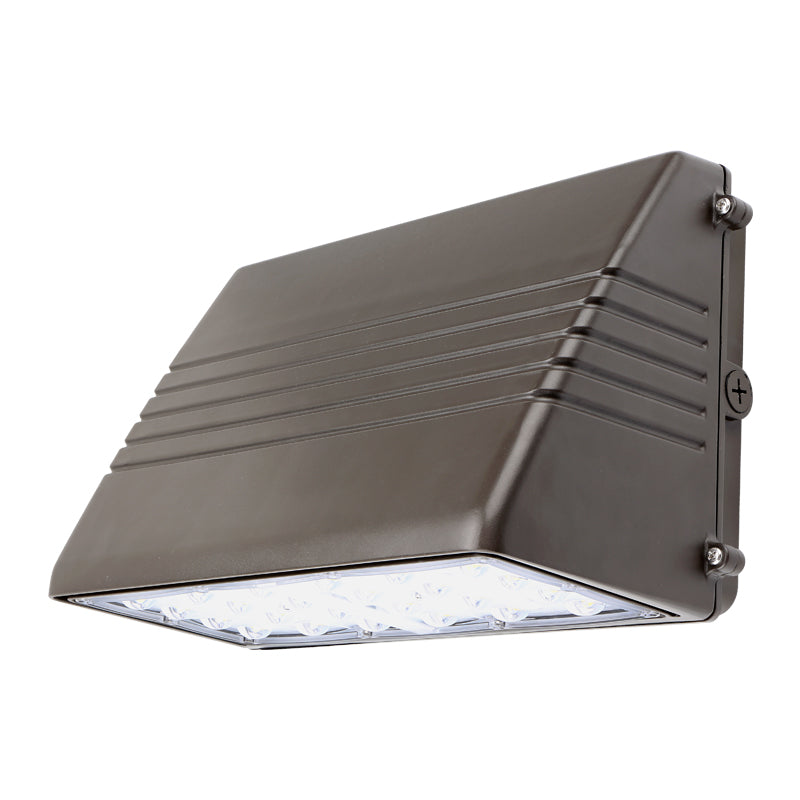

LED Full Cutoff Wall Pack - MWP02
The full cutoff LED wall pack provides a durable and efficient exterior light source for any application requiring maximum performance and minimum maintenance. The rugged, die-cast aluminum housing makes the Wall Pack virtually impenetrable to contaminants. Our building mounted outdoor lighting products are perfect for pedestrian and parking areas, walkways, garages, stairways, perimeter and other outdoor spaces requiring additional safety and security. Features & Benefits: Scalable Lumen Packages from 3,900 to 18,000 Lumens. Standard 4000K and 5000K (70 CRI) light engine configurations. Universal 120-277V or 347-480VAC input voltage with high power factor (≥0.9) and -40°C to 45°C operation. Sealed die-casting profile with 3G vibration rating for outdoor durability. Estimated 50,000-hour LED lifespan and five-year warranty.
Series Specifications
| Series No. | MWP02 |
|---|---|
| Voltage | 120-277 VAC or 347-480 VAC |
| Light Source Type | LED chips |
| Color Temperature | 4000K/5000K |
| Power | 27W, 45W, 70W, 90W, 135W |
| Light Output | 3950 lm, 6600 lm, 9900 lm, 12200 lm, 18000 lm |
| UL listing | Wet location |
| Operating Temperature | -40°C to 45°C ( -40°F to 113°F ) |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Pathway, Building entryways, Perimeter lighting |
| Mounting | Junction box or Wall mount |
| Accessory | Photocell - Button (Optional), Emergency Battery Backup |
| 27W&45W&70W | 14.21x9.25x7.99in |
| 90W&135W | 18.098x9.02x9.75in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MWP0227W27V50KD | 5000K 27W 3,950 lm 146 lm/W 100W MH requesting |
| MWP0245W27V50KD | 5000K 45W 6,450 lm 143 lm/W 175W MH |
| MWP0270W27V50KD | 5000K 70W 9,900 lm 141 lm/W 250W MH USE：900lm 90min. |
| MWP0290W27V50KD | 5000K 90W 12,200 lm 136 lm/W 320W MH |
| MWP02135W27V50KD | 5000K 135W 18,000 lm 133 lm/W 400W MH |
Pricing and inventory availability are provided by McGregor Lighting.
Product Dossier
- SKU
- MWP0227W27V50KD
- Brand
- McGregor Lighting
- Fixture Type
- LED Full Cutoff Wall Pack
- Price
- $0.00
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
The full cutoff LED wall pack provides a durable and efficient exterior light source for any application requiring maximum performance and minimum maintenance. The rugged, die-cast aluminum housing makes the Wall Pack virtually impenetrable to contaminants. Our building mounted outdoor lighting products are perfect for pedestrian and parking areas, walkways, garages, stairways, perimeter and other outdoor spaces requiring additional safety and security. Features & Benefits: Scalable Lumen Packages from 3,900 to 18,000 Lumens. Standard 4000K and 5000K (70 CRI) light engine configurations. Universal 120-277V or 347-480VAC input voltage with high power factor (≥0.9) and -40°C to 45°C operation. Sealed die-casting profile with 3G vibration rating for outdoor durability. Estimated 50,000-hour LED lifespan and five-year warranty.
Series Specifications
| Series No. | MWP02 |
|---|---|
| Voltage | 120-277 VAC or 347-480 VAC |
| Light Source Type | LED chips |
| Color Temperature | 4000K/5000K |
| Power | 27W, 45W, 70W, 90W, 135W |
| Light Output | 3950 lm, 6600 lm, 9900 lm, 12200 lm, 18000 lm |
| UL listing | Wet location |
| Operating Temperature | -40°C to 45°C ( -40°F to 113°F ) |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Pathway, Building entryways, Perimeter lighting |
| Mounting | Junction box or Wall mount |
| Accessory | Photocell - Button (Optional), Emergency Battery Backup |
| 27W&45W&70W | 14.21x9.25x7.99in |
| 90W&135W | 18.098x9.02x9.75in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MWP0227W27V50KD | 5000K 27W 3,950 lm 146 lm/W 100W MH requesting |
| MWP0245W27V50KD | 5000K 45W 6,450 lm 143 lm/W 175W MH |
| MWP0270W27V50KD | 5000K 70W 9,900 lm 141 lm/W 250W MH USE：900lm 90min. |
| MWP0290W27V50KD | 5000K 90W 12,200 lm 136 lm/W 320W MH |
| MWP02135W27V50KD | 5000K 135W 18,000 lm 133 lm/W 400W MH |
Pricing and inventory availability are provided by McGregor Lighting.
Trade Resources
FixtureFarm displays every available trade resource we receive: specification PDFs, installation instructions, line drawings, technical drawings, backplate details, photometric files, CAD / IES files, video, warranty, and energy documentation.
