McGregor Lighting

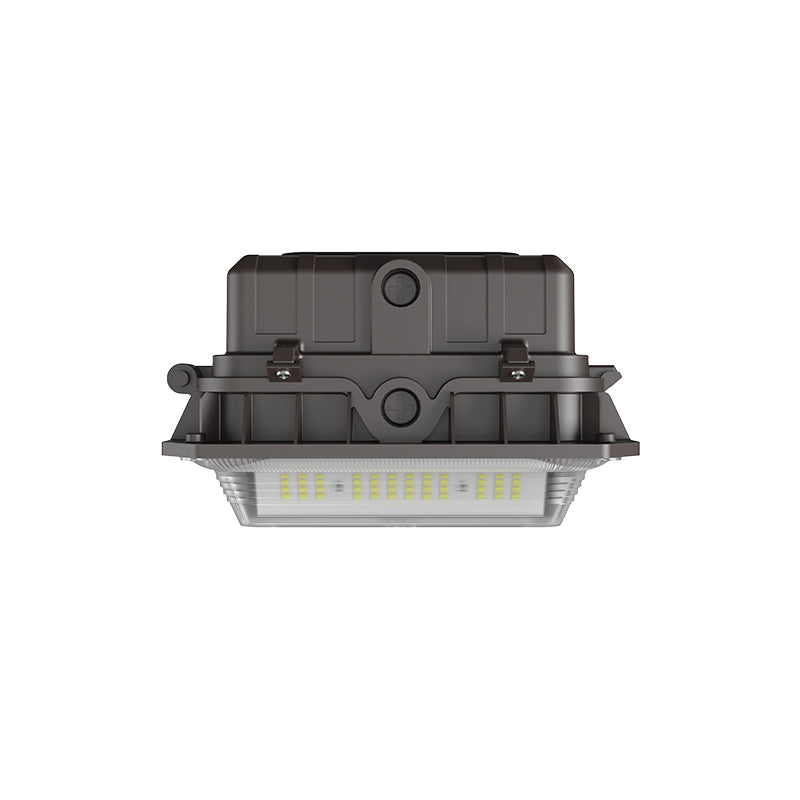

LED Canopy - MCP08
The MESTER MCP08 is a cost-effective, energy-efficient LED luminaire for surface-mount applications in commercial buildings, retail and educational facilities. The thin and lightweight design and excellent heat dissipation of the housing extends its life. A precision-engineered optical lens reduces glare, improves optical performance, and provides comfortable illumination. Features & Benefits: Sealed die-casting prole for indoor and outdoor applications. Color Temperature adjustable: 3000K, 4000K, 5000K. Three adjustable Wattage levels available for each model. 0-10V dimming driver standard for 10% to 100% dimming Emergency Battery option. Plug-and-Play PiR Sensor option. 6KV surge protection. Operating temperature is -40°C to 40°C
Series Specifications
| Series No. | MCP08 |
|---|---|
| Voltage | 120-277VAC |
| Dimmable | 0-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 3000K/4000K/5000K |
| Power | 40W, 60W, 70W |
| Light Output | 6200lm, 9400lm, 10500lm |
| Operating Temperature | -40°C to 40°C（-40°F to 104°F） |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Retail and grocery, Parking structures, Walkways |
| Mounting | Conduit pendant or surface mounting |
| Accessory | Sensor - Screw on (Optional), Emergency Box (Optional) |
| 40W/60W/70W | 9.2x9.2x3.3in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MCP0840W27VDDKDAD | 3000K/4000K/5000K Max 40W 6,000 lm 150 lm/W 175W MH |
| MCP0860W27VDDKDAD | 3000K/4000K/5000K Max 60W 9,000 lm 150 lm/W 250W MH Emergency Battery Backup |
| MCP0870W27VDDKDAD | 3000K/4000K/5000K Max 70W 10,000 lm 143 lm/W 250W MH Description: 8W 90min |
Pricing and inventory availability are provided by McGregor Lighting.
Product Dossier
- SKU
- MCP0840W27VDDKDAD
- Brand
- McGregor Lighting
- Fixture Type
- LED Canopy
- Price
- $0.00
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
The MESTER MCP08 is a cost-effective, energy-efficient LED luminaire for surface-mount applications in commercial buildings, retail and educational facilities. The thin and lightweight design and excellent heat dissipation of the housing extends its life. A precision-engineered optical lens reduces glare, improves optical performance, and provides comfortable illumination. Features & Benefits: Sealed die-casting prole for indoor and outdoor applications. Color Temperature adjustable: 3000K, 4000K, 5000K. Three adjustable Wattage levels available for each model. 0-10V dimming driver standard for 10% to 100% dimming Emergency Battery option. Plug-and-Play PiR Sensor option. 6KV surge protection. Operating temperature is -40°C to 40°C
Series Specifications
| Series No. | MCP08 |
|---|---|
| Voltage | 120-277VAC |
| Dimmable | 0-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 3000K/4000K/5000K |
| Power | 40W, 60W, 70W |
| Light Output | 6200lm, 9400lm, 10500lm |
| Operating Temperature | -40°C to 40°C（-40°F to 104°F） |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Retail and grocery, Parking structures, Walkways |
| Mounting | Conduit pendant or surface mounting |
| Accessory | Sensor - Screw on (Optional), Emergency Box (Optional) |
| 40W/60W/70W | 9.2x9.2x3.3in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MCP0840W27VDDKDAD | 3000K/4000K/5000K Max 40W 6,000 lm 150 lm/W 175W MH |
| MCP0860W27VDDKDAD | 3000K/4000K/5000K Max 60W 9,000 lm 150 lm/W 250W MH Emergency Battery Backup |
| MCP0870W27VDDKDAD | 3000K/4000K/5000K Max 70W 10,000 lm 143 lm/W 250W MH Description: 8W 90min |
Pricing and inventory availability are provided by McGregor Lighting.
