McGregor Lighting

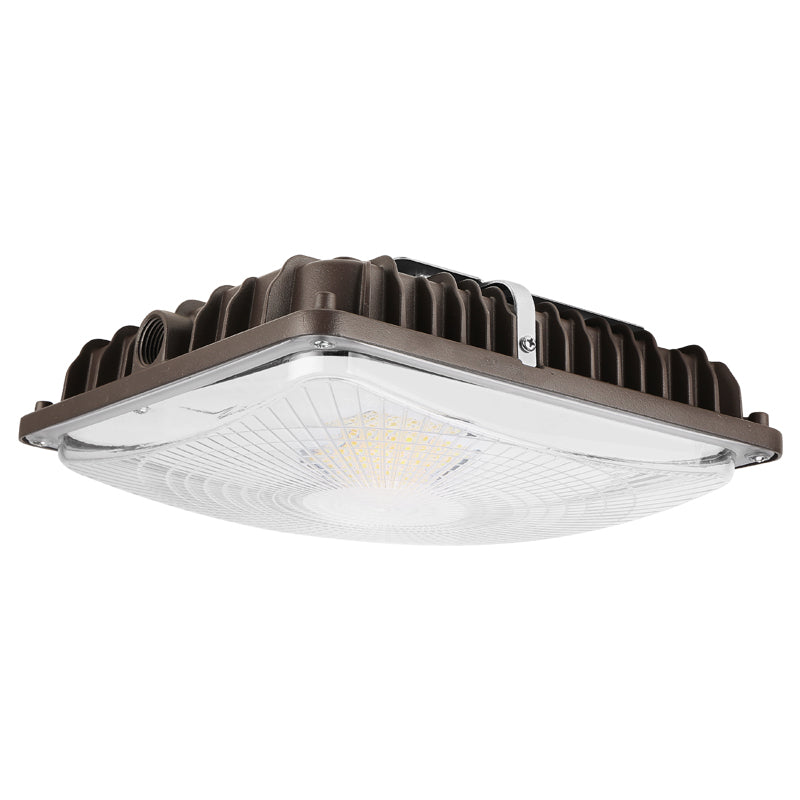

LED Canopy - MCP07
MCP07 is a budget-friendly and energy-efficient fixture suitable for outdoors such as commercial buildings, building entrances, sidewalks and indoor parking lots. The uniquely designed translucent polycarbonate lens creates a comfortable lighting effect. At the same time, it is a fixture with high return on the basis of field regulation of the output lumen value (100%, 80%, 60%, 40%) and CCT (3000K, 4000K, 5000K). The MCP07 is also easy to install and compatible with Motion sensor and emerge battery features. Features & Benefits: Full die-cast for simplicity looks and enhanced life-span and durability Two sizes and Multiple Outputs. Color Temperature adjustable: 3000K, 4000K, 5000K. Four adjustable Wattage levels available for each model. 0-10V dimming driver standard for 10% to 100% dimming Dusk-to-Dawn Photocell optional. 6KV surge protection. Operating temperature is -40°Cto 40°C.
Series Specifications
| Series No. | MCP07 |
|---|---|
| Voltage | 120-277VAC or 120-347VAC |
| Dimmable | 0-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 3000K/4000K/5000K |
| Power | 60W |
| Light Output | 8400 lm |
| UL listing | UL-CA-2235953-0 |
| Operating Temperature | -40°C to 40°C（-40°F to 104°F） |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Retail and grocery, Parking structures, Walkways |
| Mounting | Conduit pendant or surface mounting |
| Accessory | Sensor - Screw on (Optional), Emergency Box (Optional) |
| 25W&36W&48W&60W | Ø9.5x3.0in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MCP0760W27VDDKDAD | 3000K/4000K/5000K Max 60W Max 8,400 lm 140 lm/W 250W MH |
| MCP07110W27VDDKDAD | 3000K/4000K/5000K Max 110W Max 16,500 lm 150 lm/W 400W MH Emergency Box |
Pricing and inventory availability are provided by McGregor Lighting.
Product Dossier
- SKU
- MCP0760W27VDDKDAD
- Brand
- McGregor Lighting
- Fixture Type
- LED Canopy
- Price
- $0.00
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
MCP07 is a budget-friendly and energy-efficient fixture suitable for outdoors such as commercial buildings, building entrances, sidewalks and indoor parking lots. The uniquely designed translucent polycarbonate lens creates a comfortable lighting effect. At the same time, it is a fixture with high return on the basis of field regulation of the output lumen value (100%, 80%, 60%, 40%) and CCT (3000K, 4000K, 5000K). The MCP07 is also easy to install and compatible with Motion sensor and emerge battery features. Features & Benefits: Full die-cast for simplicity looks and enhanced life-span and durability Two sizes and Multiple Outputs. Color Temperature adjustable: 3000K, 4000K, 5000K. Four adjustable Wattage levels available for each model. 0-10V dimming driver standard for 10% to 100% dimming Dusk-to-Dawn Photocell optional. 6KV surge protection. Operating temperature is -40°Cto 40°C.
Series Specifications
| Series No. | MCP07 |
|---|---|
| Voltage | 120-277VAC or 120-347VAC |
| Dimmable | 0-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 3000K/4000K/5000K |
| Power | 60W |
| Light Output | 8400 lm |
| UL listing | UL-CA-2235953-0 |
| Operating Temperature | -40°C to 40°C（-40°F to 104°F） |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Retail and grocery, Parking structures, Walkways |
| Mounting | Conduit pendant or surface mounting |
| Accessory | Sensor - Screw on (Optional), Emergency Box (Optional) |
| 25W&36W&48W&60W | Ø9.5x3.0in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MCP0760W27VDDKDAD | 3000K/4000K/5000K Max 60W Max 8,400 lm 140 lm/W 250W MH |
| MCP07110W27VDDKDAD | 3000K/4000K/5000K Max 110W Max 16,500 lm 150 lm/W 400W MH Emergency Box |
Pricing and inventory availability are provided by McGregor Lighting.
