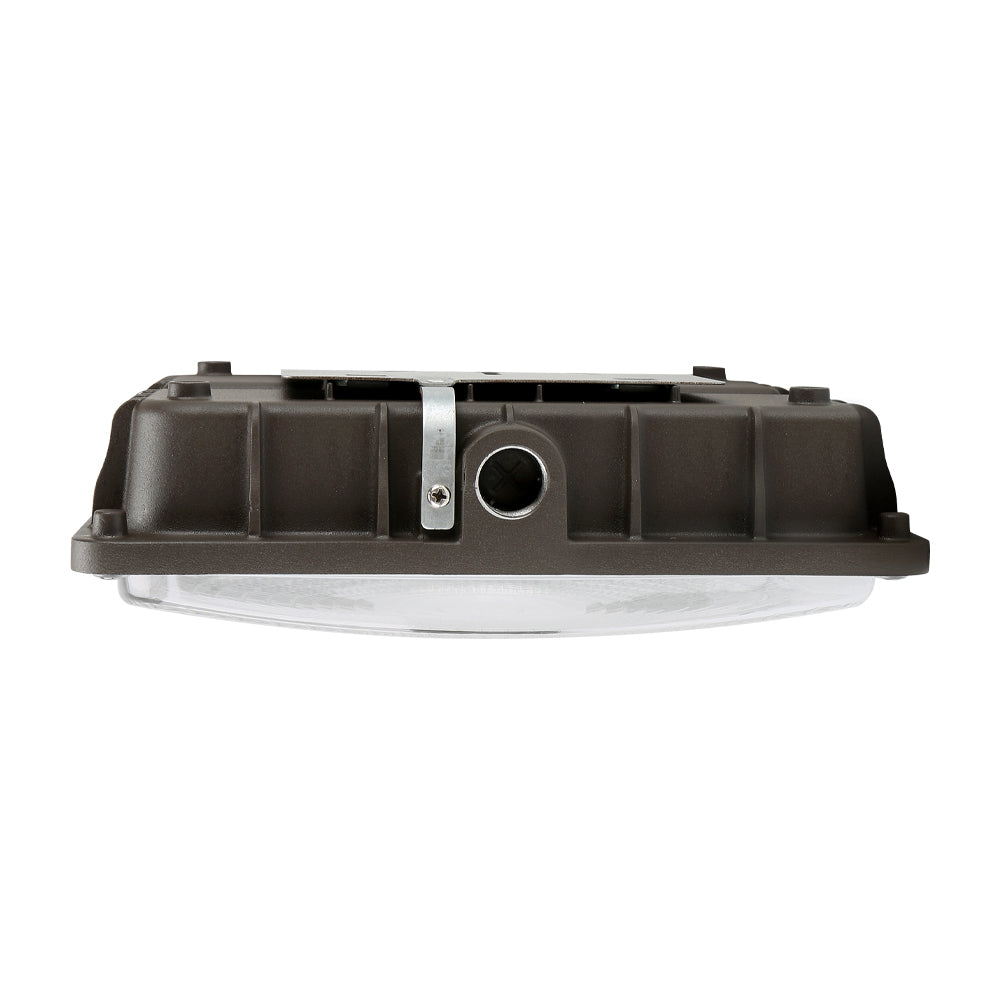

LED Canopy - MCP05
MCP05 is a budget-friendly and energy-efficient fixture suitable for outdoors such as commercial buildings, building entrances, sidewalks and indoorparking lots. The uniquely designed translucent polycarbonate lens creates a comfortable lighting effect. At the same time, it is a fixture with high return on the basis of field regulation of the output lumen value (100%, 80%, 60%, 40%) and CCT (3000K, 4000K, 5000K). The MCP07 is also easy to install and compatible with Motion sensor and emerge battery features. Features & Benefits: Sealed die-casting prole for indoor and outdoor applications. Parking Garage Photometry provides a wide light distribution and greater uniformity. 0-10V dimming driver standard for 10% to 100% dimming. Occupancy sensor option. Emergency Battery option. Operating temperature is -40°C to 40°C.
Series Specifications
| Series No. | MCP05 |
|---|---|
| Voltage | 120-277VAC or 347-480VAC |
| Dimmable | 1-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 4000K/5000K |
| Power | 20W, 27W, 40W, 60W |
| Light Output | 2600 lm, 3800 lm, 5450 lm, 8000lm |
| UL listing | 20191010-E359489 |
| IP Rating | IP65 |
| Operating Temperature | -40°C to 45°C（-40°F to 113°F） |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Retail and grocery, Parking structures, Walkways |
| Mounting | Pendant or surface mount |
| Accessory | Sensor (Optional), Emergency Box (Optional) |
| 27W & 40W & 60W | 9.52x9.52x3.19in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MCP0527W27V50KDD | 5000K 27W 3,800 lm 141 lm/W 100W MH |
| MCP0540W27V50KDD | 5000K 40W 5,450 lm 136 lm/W 175W MH |
| MCP0560W27V50KDD | 5000K 60W 8,000 lm 133 lm/W 250W MH |
Pricing and inventory availability are provided by McGregor Lighting.
