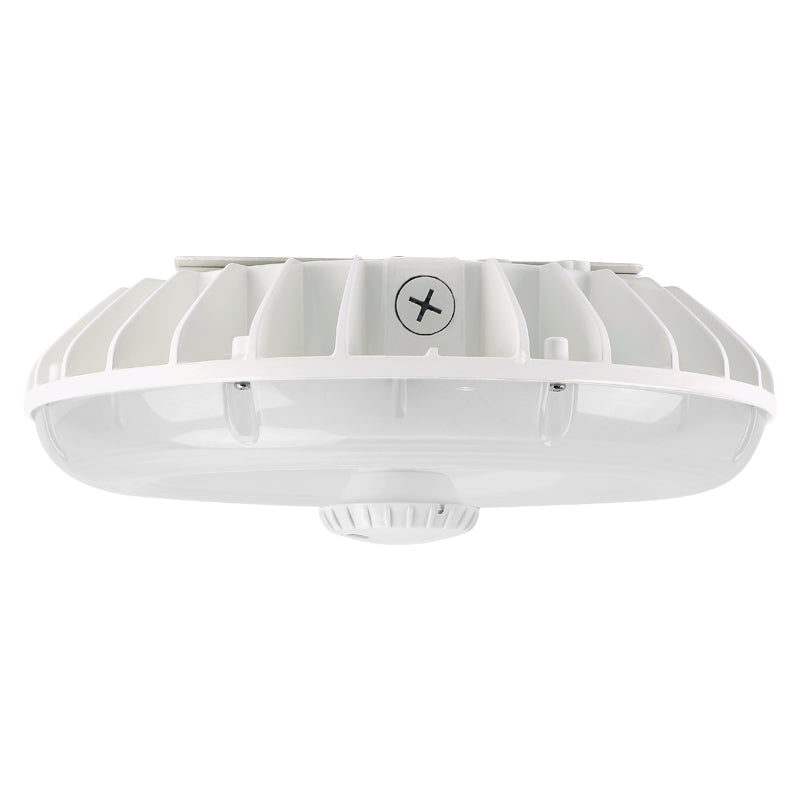

LED Canopy - MCP03
MCP03 series is a commercial grade LED canopy luminaire that utilizes high powered LEDs with precise efficient optical control and on board wattage and lumen choices. It provides excellent uniformity, energy efficiency and control for surface mount applications. The versatile and functional features: energy-efficient LED system, rugged design, pendant or junction box mounting options, multiple lumen packages and optical distributions. Features & Benefits: Heavy-duty die-cast aluminum housing with a modern aesthetic. Available in Paking Garage or Lowbay distribution. 60W optional for Color Temperature adjustable: 4000K, 5000K. Four adjustable Wattage levels available for 60W. 6KV surge protection. 0-10V dimming driver standard for 10% to 100% dimming. Operating temperature is -40°C to 45°C.
Series Specifications
| Series No. | MCP03 |
|---|---|
| Voltage | 120-277VAC or 347 VAC |
| Dimmable | 1-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 4000K/5000K |
| Power | 30W, 45W, 50W, 60W, 65W, 90W |
| Light Output | 3800 lm, 5500 lm, 5500 lm, 7600 lm, 7600 lm, 11600 lm |
| UL listing | UL-CA-L359489-31-32607102-5, UL-US-L359489-11-32909102-5 |
| Operating Temperature | -40°C to 45°C（-40°F to 113°F） |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Retail and grocery, Parking structures, Walkways |
| Mounting | Pendant or surface mount |
| Accessory | Sensor (Optional), Emergency Box (Optional) |
| 30W & 45W & 60W (Emergency Battery) | 12x18.85x3.32in |
| 30W & 45W & 60W | 12x12x3.32in |
| 90W | Ø13.03x3.15in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MCP0330W27V50KDDPG | 5000K 30W 4,000 lm 133 lm/W 100W MH |
| MCP0345W27V50KDDPG | 5000K 45W 5,700 lm 127 lm/W 100W MH |
| MCP0360W27V50KDDPG | 5000K 60W 7,500 lm 125 lm/W 175W MH Emergency Box |
| MCP0390W27V50KDDPG | 5000K 90W 12,300 lm 137 lm/W 250W MH USE：900lm 90min. Description: 12-24VDC input |
| MCP0360W27VDDKDPG | 4000K/5000K Max 60W Max 7,700 lm 128 lm/W 250W MH |
Pricing and inventory availability are provided by McGregor Lighting.
Product Dossier
- SKU
- MCP0330W27V50KDDPG
- Brand
- McGregor Lighting
- Fixture Type
- LED Canopy
- Price
- $0.00
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
MCP03 series is a commercial grade LED canopy luminaire that utilizes high powered LEDs with precise efficient optical control and on board wattage and lumen choices. It provides excellent uniformity, energy efficiency and control for surface mount applications. The versatile and functional features: energy-efficient LED system, rugged design, pendant or junction box mounting options, multiple lumen packages and optical distributions. Features & Benefits: Heavy-duty die-cast aluminum housing with a modern aesthetic. Available in Paking Garage or Lowbay distribution. 60W optional for Color Temperature adjustable: 4000K, 5000K. Four adjustable Wattage levels available for 60W. 6KV surge protection. 0-10V dimming driver standard for 10% to 100% dimming. Operating temperature is -40°C to 45°C.
Series Specifications
| Series No. | MCP03 |
|---|---|
| Voltage | 120-277VAC or 347 VAC |
| Dimmable | 1-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 4000K/5000K |
| Power | 30W, 45W, 50W, 60W, 65W, 90W |
| Light Output | 3800 lm, 5500 lm, 5500 lm, 7600 lm, 7600 lm, 11600 lm |
| UL listing | UL-CA-L359489-31-32607102-5, UL-US-L359489-11-32909102-5 |
| Operating Temperature | -40°C to 45°C（-40°F to 113°F） |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Retail and grocery, Parking structures, Walkways |
| Mounting | Pendant or surface mount |
| Accessory | Sensor (Optional), Emergency Box (Optional) |
| 30W & 45W & 60W (Emergency Battery) | 12x18.85x3.32in |
| 30W & 45W & 60W | 12x12x3.32in |
| 90W | Ø13.03x3.15in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MCP0330W27V50KDDPG | 5000K 30W 4,000 lm 133 lm/W 100W MH |
| MCP0345W27V50KDDPG | 5000K 45W 5,700 lm 127 lm/W 100W MH |
| MCP0360W27V50KDDPG | 5000K 60W 7,500 lm 125 lm/W 175W MH Emergency Box |
| MCP0390W27V50KDDPG | 5000K 90W 12,300 lm 137 lm/W 250W MH USE：900lm 90min. Description: 12-24VDC input |
| MCP0360W27VDDKDPG | 4000K/5000K Max 60W Max 7,700 lm 128 lm/W 250W MH |
Pricing and inventory availability are provided by McGregor Lighting.
