McGregor Lighting

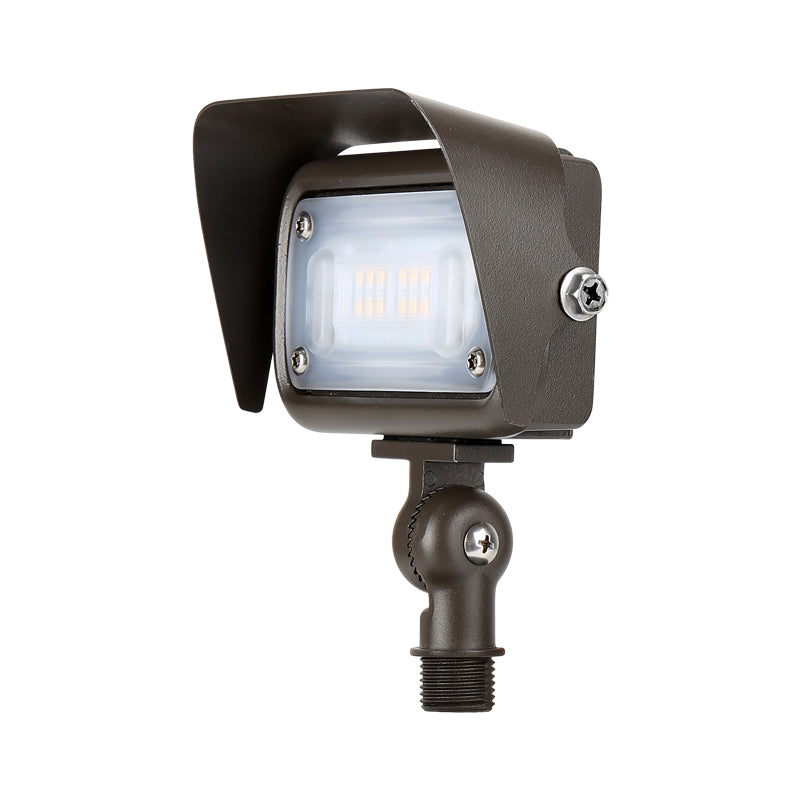

Landscape - MLS01
This MLS01 series is the perfect choice for many commercial and residential applications including: wall washing, landscape, facade, or small area illumination. The landscape series has a traditional 1/2″ NPS threaded knuckle mounting that provides superior aiming without loosening over time and is constructed out of die-cast aluminum with powder coat paint finish for excellent value and rugged service. Features & Benefits: Rugged aluminum housing with UV-resistant powder coat for corrosion protection. Scalable lumen output from 550lm to 4000lm with 7W to 40W power consumption. AC/DC 12V input voltage for versatile power supply options. Long LED lifespan of up to 50,000 hours. Rotable hood for adjustable glare control and 1/2″ NPS threaded mounting.
Series Specifications
| Series No. | MLS01 |
|---|---|
| Voltage | AC/DC 12V |
| Light Source Type | LED chips |
| Color Temperature | 2700K/3000K/4000K/5000K |
| Power | 7W, 12W, 20W, 40W |
| Light Output | 600 lm, 1000 lm, 1700 lm, 3400 lm |
| UL listing | Wet location |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Landscape, Building facades, Wall washing |
| Mounting | Traditional 1/2" NPS threaded adjustable knuckle mounting |
| Accessory | Ground Stake ( Optional ), Cowl ( Optional ) |
| 7W & 12W | 4.72x2.95x1.27in |
| 20W | 7.08x4.42x1.61in |
| 40W | 8.26x5.15x2in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MLS017W12V30KHDB77 | 3000K 7W 600 lm 86 lm/W 60W Incandescent |
| MLS0112W12V30KHDB77 | 3000K 12W 1,000 lm 83 lm/W 120W Incandescent |
| MLS0120W12V30KHDB77 | 3000K 20W 1,700 lm 85 lm/W 50W HID |
| MLS0140W12V30KHDB77 | 3000K 40W 3,400 lm 85 lm/W 100W MH |
Pricing and inventory availability are provided by McGregor Lighting.
Product Dossier
- SKU
- MLS017W12V30KHDB77
- Brand
- McGregor Lighting
- Fixture Type
- Landscape
- Price
- $0.00
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
This MLS01 series is the perfect choice for many commercial and residential applications including: wall washing, landscape, facade, or small area illumination. The landscape series has a traditional 1/2″ NPS threaded knuckle mounting that provides superior aiming without loosening over time and is constructed out of die-cast aluminum with powder coat paint finish for excellent value and rugged service. Features & Benefits: Rugged aluminum housing with UV-resistant powder coat for corrosion protection. Scalable lumen output from 550lm to 4000lm with 7W to 40W power consumption. AC/DC 12V input voltage for versatile power supply options. Long LED lifespan of up to 50,000 hours. Rotable hood for adjustable glare control and 1/2″ NPS threaded mounting.
Series Specifications
| Series No. | MLS01 |
|---|---|
| Voltage | AC/DC 12V |
| Light Source Type | LED chips |
| Color Temperature | 2700K/3000K/4000K/5000K |
| Power | 7W, 12W, 20W, 40W |
| Light Output | 600 lm, 1000 lm, 1700 lm, 3400 lm |
| UL listing | Wet location |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Landscape, Building facades, Wall washing |
| Mounting | Traditional 1/2" NPS threaded adjustable knuckle mounting |
| Accessory | Ground Stake ( Optional ), Cowl ( Optional ) |
| 7W & 12W | 4.72x2.95x1.27in |
| 20W | 7.08x4.42x1.61in |
| 40W | 8.26x5.15x2in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MLS017W12V30KHDB77 | 3000K 7W 600 lm 86 lm/W 60W Incandescent |
| MLS0112W12V30KHDB77 | 3000K 12W 1,000 lm 83 lm/W 120W Incandescent |
| MLS0120W12V30KHDB77 | 3000K 20W 1,700 lm 85 lm/W 50W HID |
| MLS0140W12V30KHDB77 | 3000K 40W 3,400 lm 85 lm/W 100W MH |
Pricing and inventory availability are provided by McGregor Lighting.
