McGregor Lighting

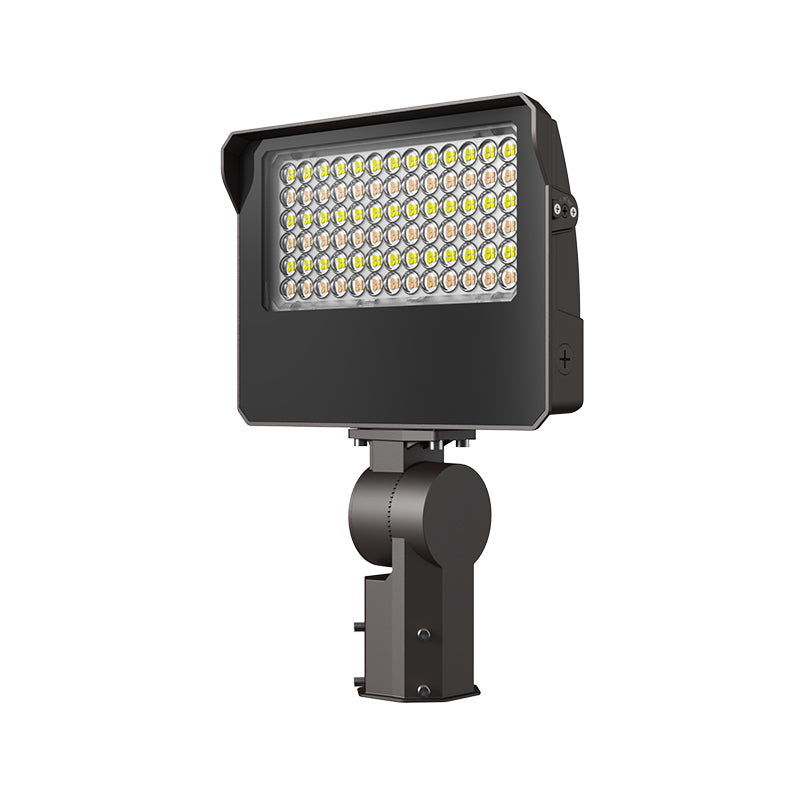

Flood Light - MFD12
MFD12 is a 36-in-1 powerful LED flood light. It is designed to be a versatile productwith simple lines. It not only provides three selectable beam angles, but also 4 levelsof lumen output and 3 selectable CCTs are available, which greatly improves theflexibility of the product and effectively reduces the number of SKUs and the difficultyof selection. MFD12 also provides a variety of installation methods, making it an idealchoice for a variety of general applications. It is suitable for display products, lightingcorridors, building exteriors, billboards and other building floodlighting, as well aslandscape lighting in parks, squares, playgrounds and other places. Features & Benefits： 3 beam angles, 4 lumen levels, 3 CCTs for flexibility. Die - cast aluminum for heat, sealed glass/housing for protection & long life. 120 - 277V input, 0 - 10V dimming, good power factor & low THD. 1/2″ NPS Knuckle, Slipfitter, Trunnion, Yoke installation options. 50,000 - hour LED life, 5 - year warranty.
Series Specifications
| Series No. | MFD12 |
|---|---|
| Voltage | 120-277VAC or 277-480VAC |
| Dimmable | 0-10V dimming |
| CCT | 3000K/4000K/5000K |
| Wattage | 30W, 60W, 90W, 120W, 150W |
| Light Output | 4260 lm, 8500 lm, 12750 lm, 17270 lm, 21430 lm |
| IP Rating | IP65 |
| Operating Temperature | -40˚C - + 45˚C |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Landscape, Building facades, Commercial lighting |
| Mounting | 1/2" NPS Knuckle, Slipfitter, Trunnion and Yoke |
| Accessory | Photocell (Optional), Power and CCT controller (Optional) |
| 30W | 7.56 x 5.88 x 1.98in |
| 60W&90W | 10.14 x 8.84 x 2.36in |
| 120W&150W | 12.13 x 9.53 x 2.8 in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MFD1230W27VDDKDAD | 3000K/4000K/5000K Max 30W Max 4,691 lm 156 lm/W 50W MH |
| MFD1260W27VDDKDAD | 3000K/4000K/5000K Max 60W Max 9,383 lm 156 lm/W 250W MH |
| MFD1290W27VDDKDAD | 3000K/4000K/5000K Max 90W Max 14,074 lm 156 lm/W 320W MH |
| MFD12120W27VDDKDAD | 3000K/4000K/5000K Max 120W Max 18,895 lm 157 lm/W 400W MH (Optional) |
| MFD12150W27VDDKDAD | 3000K/4000K/5000K Max 150W Max 23,619 lm 157 lm/W 400W MH |
| MFD12330W27VDDKDAD | 3000K/4000K/5000K Max 330W Max 50,539 lm 153 lm/W 750W MH Glare Control Shield |
Pricing and inventory availability are provided by McGregor Lighting.
