McGregor Lighting

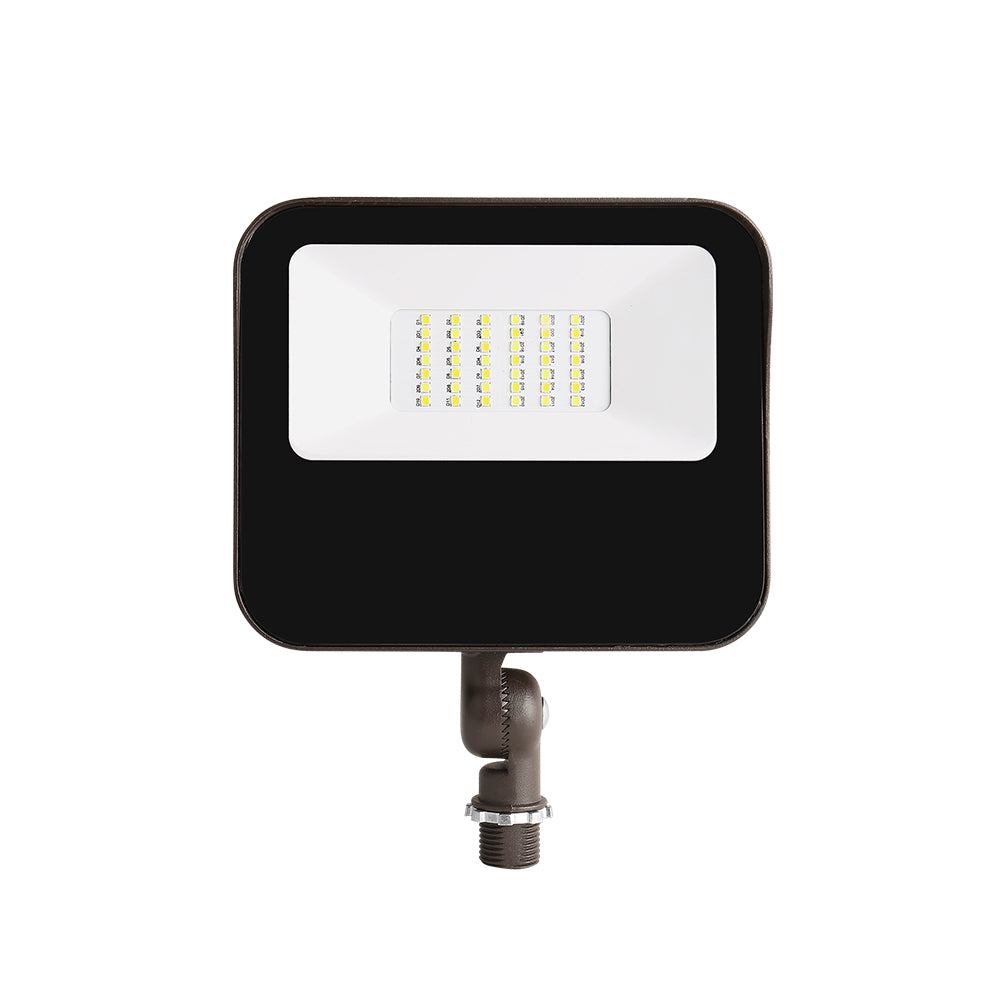

Flood Light - MFD11
MFD11 aims to provide customers with an economical, efficient, flexible and long-life floodlight. The low-profile and stylish exterior design can be well integrated into various architectural environments. Available in three sizes and multiple lumen packages from 15W-120W, this product also achieve up to 161lm/W efficiency. At the same time, it takes into account the functions of light control, CCT & Power adjustable, which can save energy to the greatest extent and facilitate customer stocking. Reliable IP65 structural design, MFD11 is very suitable for general flood lighting of courtyards, driveways, buildings, billboards, etc. Features & Benefits: Heavy-duty cast aluminum housing and 3G vibration rated. Available in NEMA 7Hx7V. CCT adjustable: 3000K,4000K,5000K. Four adjustable Wattage levels available for each model. Three sizes and Multiple Outputs. 0-10V dimming driver standard for 10% to 100% dimming. Operating temperature is -40℃ to 45℃.
Series Specifications
| Series No. | MFD11 |
|---|---|
| Voltage | 120-277 VAC |
| Dimmable | 1-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 3000K/4000K/5000K |
| Power | 15W, 27W, 40W, 65W, 85W, 120W |
| Light Output | 2300 lm, 3800 lm, 6000 lm, 9700 lm, 14500 lm,19000 lm |
| UL listing | UL-CA-2149907-2 |
| IP Rating | IP65 |
| Operating Temperature | -40˚C - + 40˚C ( -40˚F - + 104˚F ) |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Landscape, Building facades, Commercial lighting |
| Mounting | 1/2" NPS Knuckle, Slipfitter, Trunnion and Yoke |
| Accessory | Photocell (Optional), Power and CCT controller (Optional) |
| 15W & 27W | 6.8x5.8x1.9in |
| 40W & 65W | 8.1x7.7x2.1in |
| 90W & 120W | 10.4x11.3x3.3in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MFD1115W27VDDKDB77 | 3000K/4000K/5000K Max 15W Max 2,300 lm 153 lm/W 50W MH |
| MFD1127W27VDDKDB77 | 3000K/4000K/5000K Max 27W Max 3,800 lm 141 lm/W 100W MH USE: The wattage and CCT can be |
| MFD1140W27VDDKDB77 | 3000K/4000K/5000K Max 40W Max 6,000 lm 150 lm/W 175W MH on the controller. |
| MFD1165W27VDDKDB77 | 3000K/4000K/5000K Max 65W Max 9,700 lm 149 lm/W 250W MH |
| MFD1190W27VDDKDB77 | 3000K/4000K/5000K Max 90W Max 14,500 lm 161 lm/W 320W MH |
| MFD11120W27VDDKDB77 | 3000K/4000K/5000K Max 120W Max 19,000 lm 158 lm/W 400W MH |
Pricing and inventory availability are provided by McGregor Lighting.
