McGregor Lighting

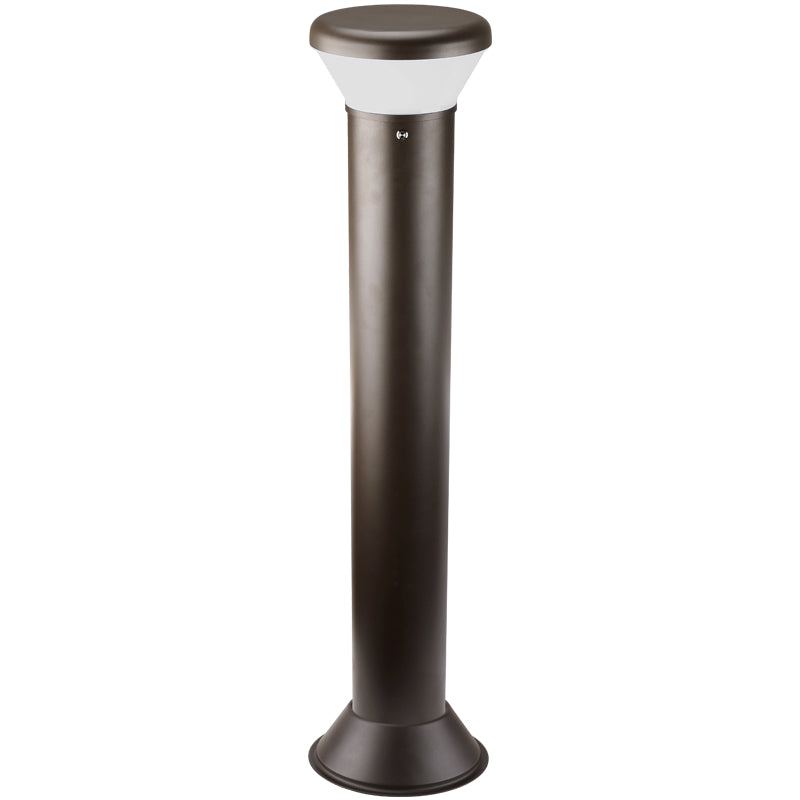

Bollards - MBL01
The MESTER LED Bollard is a stylish, energysaving, long-life solution designed to perform the way a bollard should-with good glare light.An optical leapforward, this full cut-off luminaire will meet the most stringent of lighting codes. Its rugged construction, durable finish and long-lasting LEDs will provide years of maintenance-free service. It is ideal for illuminating building entryways, walking paths and pedestrian plazas, as well as any other location requiring a low-mounting-height light source. Features & Benefits: Durable die-cast aluminum housing UV resistant Milky polycarbonate lens. Built in Emergency Battery. 360° degrees surround illumination. Robust ground cage pre-buried installation. Operating temperature is -40°C to 45°C.
Series Specifications
| Series No. | MBL01 |
|---|---|
| Voltage | 120-277 VAC |
| Dimmable | 1-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 3000K/4000K/5000K |
| Power | 26W |
| Light Output | 3100 lm |
| UL listing | UL-CA-L359489-31-02609102-5 |
| Operating Temperature | -40 ̊ C to 45 ̊ C ( -40°F to 113°F ) |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Walkways, Retail, Apartment Complexes |
| Accessory | Emergency Battery Backup (Optional) |
| 26W | 50.62x5.5xØ9.28in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MBL0126W27V50KD | 3.5 ft 5000K 26W 3,100 lm 119 lm/W 100W MH USE：900lm 90min. |
| MBL0126W27VDDKD | 3000K/4000K/5000K Max 26W Max 3,200 lm 123 lm/W 100W MH |
Pricing and inventory availability are provided by McGregor Lighting.
