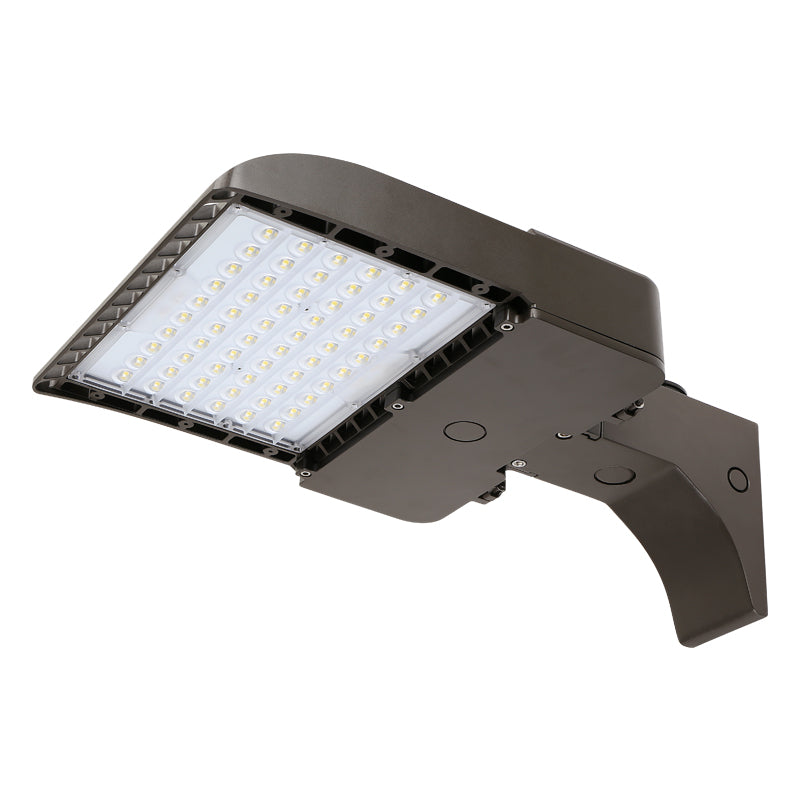

Area & Site - MAL06
MAL06 series utilizes the latest advancements in solid-state lighting to deliver a maximum level of output with minimal energy consumption for a modern outdoor lighting solution. It is available with a wide choice of different LED wattage configurations and optical distributions designed to replace MH lighting up to 1000W MH. Multiple different mounting options allow for application in a wide variety of new and existing installations. Features & Benefits: Durable one-piece die-cast aluminum housing and polycarbonate lens. Available in lES Type lll, IV,V distributions 10KV(@120-277V)or 20KV@347-480V) surge protection. Standard 0-10V dimming driver for 10% to 100% dimming. Operating temperature is -40°C to 45°C. Five easy to install installation options available.
Series Specifications
| Series No. | MAL06 |
|---|---|
| Voltage | 120-277 VAC or 347-480 VAC |
| Dimmable | 1-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 4000K/5000K |
| Power | 100W, 150W, 200W, 240W, 300W, 350W |
| Light Output | 14900 lm, 23150 lm, 29000 lm, 34000 lm, 44000 lm, 52150 lm |
| UL listing | Wet location |
| Operating Temperature | -40 ̊ C to 45 ̊ C (-40°F to 113°F) |
| Lifespan | 100,000-hour |
| Warranty | 10 year |
| Application | Automobile dealerships, Parking lots, Downtown areas |
| Mounting | Round pole, Square pole, Slipfitter and Wall mount |
| Accessory | Sensor (Optional), Photocell (Optional), External Glare Shield External Glare Full Visor (Optional) |
| 100W & 150W & 200W | 22.46x13x6.99in |
| 240W & 300W & 350W | 31.78x13.4x6.99in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MAL06100W27V50KDSQT3 | 5000K 100W 14,200 lm 142 lm/W 250W MH Photocell - 120V-277V |
| MAL06150W27V50KDSQT3 | 5000K 150W 21,200 lm 141 lm/W 400W MH USE: Photocell is field installed |
| MAL06200W27V50KDSQT3 | 5000K 200W 28,000 lm 140 lm/W 400W MH |
| MAL06240W27V50KDSQT3 | 5000K 240W 34,000 lm 142 lm/W 750W MH |
| MAL06300W27V50KDSQT3 | 5000K 300W 42,500 lm 142 lm/W 1000W MH |
| MAL06350W27V50KDSQT3 | 5000K 350W 50,000 lm 143 lm/W 1000W MH External Glare Full Visor |
Pricing and inventory availability are provided by McGregor Lighting.
Product Dossier
- SKU
- MAL06100W27V50KDSQT3
- Brand
- McGregor Lighting
- Fixture Type
- Area & Site
- Price
- $0.00
- Availability
- Available to order
Compatible accessories
Complete the fixture specification.
Each accessory is individually specified and ordered. Confirm pole, tenon and fixture mounting dimensions before ordering.
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
SKUMAL06100W27V50KDSQT3
BrandMcGregor Lighting
Product TypeArea & Site
Price$0.00
AvailabilityAvailable to order
Designer fixture information
MAL06 series utilizes the latest advancements in solid-state lighting to deliver a maximum level of output with minimal energy consumption for a modern outdoor lighting solution. It is available with a wide choice of different LED wattage configurations and optical distributions designed to replace MH lighting up to 1000W MH. Multiple different mounting options allow for application in a wide variety of new and existing installations. Features & Benefits: Durable one-piece die-cast aluminum housing and polycarbonate lens. Available in lES Type lll, IV,V distributions 10KV(@120-277V)or 20KV@347-480V) surge protection. Standard 0-10V dimming driver for 10% to 100% dimming. Operating temperature is -40°C to 45°C. Five easy to install installation options available.
Series Specifications
| Series No. | MAL06 |
|---|---|
| Voltage | 120-277 VAC or 347-480 VAC |
| Dimmable | 1-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 4000K/5000K |
| Power | 100W, 150W, 200W, 240W, 300W, 350W |
| Light Output | 14900 lm, 23150 lm, 29000 lm, 34000 lm, 44000 lm, 52150 lm |
| UL listing | Wet location |
| Operating Temperature | -40 ̊ C to 45 ̊ C (-40°F to 113°F) |
| Lifespan | 100,000-hour |
| Warranty | 10 year |
| Application | Automobile dealerships, Parking lots, Downtown areas |
| Mounting | Round pole, Square pole, Slipfitter and Wall mount |
| Accessory | Sensor (Optional), Photocell (Optional), External Glare Shield External Glare Full Visor (Optional) |
| 100W & 150W & 200W | 22.46x13x6.99in |
| 240W & 300W & 350W | 31.78x13.4x6.99in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MAL06100W27V50KDSQT3 | 5000K 100W 14,200 lm 142 lm/W 250W MH Photocell - 120V-277V |
| MAL06150W27V50KDSQT3 | 5000K 150W 21,200 lm 141 lm/W 400W MH USE: Photocell is field installed |
| MAL06200W27V50KDSQT3 | 5000K 200W 28,000 lm 140 lm/W 400W MH |
| MAL06240W27V50KDSQT3 | 5000K 240W 34,000 lm 142 lm/W 750W MH |
| MAL06300W27V50KDSQT3 | 5000K 300W 42,500 lm 142 lm/W 1000W MH |
| MAL06350W27V50KDSQT3 | 5000K 350W 50,000 lm 143 lm/W 1000W MH External Glare Full Visor |
Pricing and inventory availability are provided by McGregor Lighting.
