McGregor Lighting

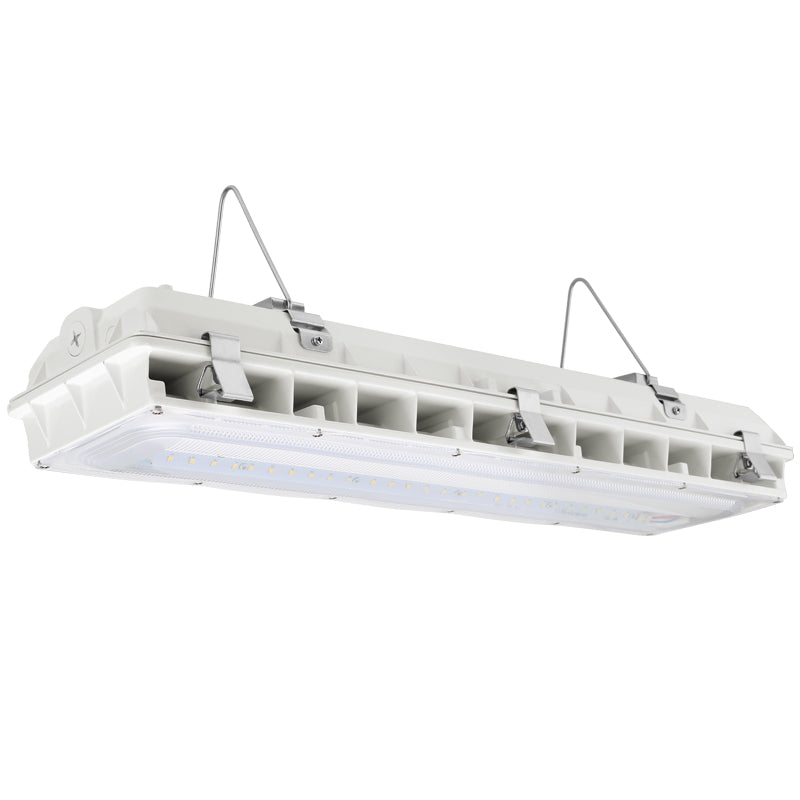

LED Vapor Tight Linear - MVT03
Mester vapor tight linear provides exceptional illumination performance, cost-effective lighting and are designed for easy installation to save time and money. Housing is completely sealed against moisture and environmental contaminants. The MVT03 is suitable to match existing fluorescent fixtures or keep the same aesthetic throughout your site. Ideal for using in industrial, manufacturing, grocery and retail. Features & Benefits: High lumen output up to 13,000 lumens with 95W power. Die-cast aluminum separable structure with elastic sheet fixation. Through hole heat dissipation design for extended lifespan. Standard 1-10V dimming and optional motion sensor for energy efficiency. UL/cUL wet location and DLC qualifications for reliability.
Series Specifications
| Series No. | MVT03 |
|---|---|
| Voltage | 120-277 VAC |
| Dimmable | 1-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 4000K/5000K |
| Power | 45W, 70W, 95W |
| Light Output | 6000 lm, 9400 lm, 13000 lm |
| UL listing | E359489 |
| Operating Temperature | -40°C to 45°C ( -40°F to 113°F ) |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Grocery, Parking structures, Industrial lighting |
| Mounting | Surface mounting |
| Accessory | Sensor - Screw on, Emergency Battery Backup |
| 45W & 70W & 95W | 23.6x6.8x3.7in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MVT0345W27V50KPG | 5000K 45W 5,600 lm 124 lm/W 175W MH |
| MVT0370W27V50KPG | 5000K 70W 8,500 lm 121 lm/W 250W MH USE：900lm 90min. |
| MVT0395W27V50KPG | 5000K 95W 11,600 lm 122 lm/W 250W MH |
| MVT0345W27V50KLB | 5000K 45W 6,000 lm 133 lm/W 175W MH PIR Sensor, 120V-277V |
| MVT0370W27V50KLB | 5000K 70W 9,400 lm 134 lm/W 250W MH |
| MVT0395W27V50KLB | 5000K 95W 13,000 lm 137 lm/W 250W MH |
| MVT0395W27VDDKPG | 4000K/5000K Max 95W Max 11,600 lm 122 lm/W 250W MH V-Hook Pendant |
| MVT0395W27VDDKLB | 4000K/5000K Max 95W Max 13,000 lm 137 lm/W 250W MH |
Pricing and inventory availability are provided by McGregor Lighting.
Product Dossier
- SKU
- MVT0345W27V50KPG
- Brand
- McGregor Lighting
- Fixture Type
- LED Vapor Tight Linear
- Price
- $0.00
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
Mester vapor tight linear provides exceptional illumination performance, cost-effective lighting and are designed for easy installation to save time and money. Housing is completely sealed against moisture and environmental contaminants. The MVT03 is suitable to match existing fluorescent fixtures or keep the same aesthetic throughout your site. Ideal for using in industrial, manufacturing, grocery and retail. Features & Benefits: High lumen output up to 13,000 lumens with 95W power. Die-cast aluminum separable structure with elastic sheet fixation. Through hole heat dissipation design for extended lifespan. Standard 1-10V dimming and optional motion sensor for energy efficiency. UL/cUL wet location and DLC qualifications for reliability.
Series Specifications
| Series No. | MVT03 |
|---|---|
| Voltage | 120-277 VAC |
| Dimmable | 1-10V dimming |
| Light Source Type | LED chips |
| Color Temperature | 4000K/5000K |
| Power | 45W, 70W, 95W |
| Light Output | 6000 lm, 9400 lm, 13000 lm |
| UL listing | E359489 |
| Operating Temperature | -40°C to 45°C ( -40°F to 113°F ) |
| Lifespan | 50,000 hours |
| Warranty | 5 year |
| Application | Grocery, Parking structures, Industrial lighting |
| Mounting | Surface mounting |
| Accessory | Sensor - Screw on, Emergency Battery Backup |
| 45W & 70W & 95W | 23.6x6.8x3.7in |
Ordering Matrix
| McGregor Model | Catalog Data |
|---|---|
| MVT0345W27V50KPG | 5000K 45W 5,600 lm 124 lm/W 175W MH |
| MVT0370W27V50KPG | 5000K 70W 8,500 lm 121 lm/W 250W MH USE：900lm 90min. |
| MVT0395W27V50KPG | 5000K 95W 11,600 lm 122 lm/W 250W MH |
| MVT0345W27V50KLB | 5000K 45W 6,000 lm 133 lm/W 175W MH PIR Sensor, 120V-277V |
| MVT0370W27V50KLB | 5000K 70W 9,400 lm 134 lm/W 250W MH |
| MVT0395W27V50KLB | 5000K 95W 13,000 lm 137 lm/W 250W MH |
| MVT0395W27VDDKPG | 4000K/5000K Max 95W Max 11,600 lm 122 lm/W 250W MH V-Hook Pendant |
| MVT0395W27VDDKLB | 4000K/5000K Max 95W Max 13,000 lm 137 lm/W 250W MH |
Pricing and inventory availability are provided by McGregor Lighting.
Trade Resources
FixtureFarm displays every available trade resource we receive: specification PDFs, installation instructions, line drawings, technical drawings, backplate details, photometric files, CAD / IES files, video, warranty, and energy documentation.
